Description
Technical Specifications
| Specification | OPX-215 |
|---|---|

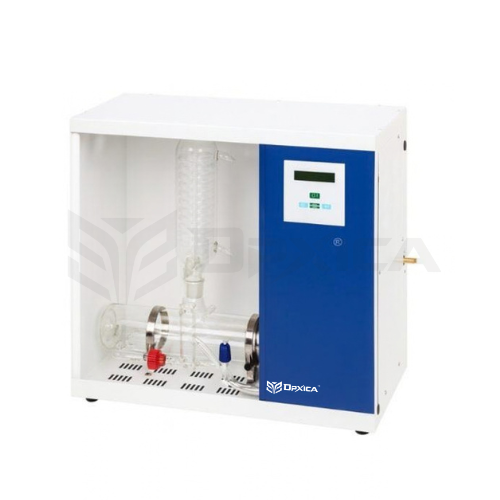

| Product Name | Water Distillation Cabinet Model |
| Model No. | OPX-215 |
| Type | Cabinet-Type Water Distillation System |
| Design | Fully Enclosed Cabinet |
| Distillation Assembly | Horizontal Glass Assembly |
| Water-Level Monitoring | Built-In Water-Level Sensor |
| Condenser | Specially Designed Efficient Cooling Condenser |
| Safety System | Acrylic Safety Screen |
| Cabinet Lid | Removable |
| Acrylic Screen | Removable |
| Maintenance | Easy Access to Glass Components |
| Distillation Method | Boiling & Condensation |
| Distillate | High-Quality Distilled Water |
| Specified Distillate Quality | Pyrogen-Free* |
| Applications | Laboratory & Industrial Distillation |
Pyrogen-free performance should be confirmed against the manufacturer’s validated test specifications and operating conditions before making a regulated claim.
Key Features
1. Fully Enclosed Cabinet Design
The OPX-215 Water Distillation Cabinet Model houses the major distillation components inside a protective cabinet, providing an organized and space-efficient laboratory setup.
2. Horizontal Glass Assembly
The system incorporates a horizontal glass distillation assembly designed for efficient boiling, vapor movement, condensation, and collection of distilled water.
3. Built-In Water-Level Sensor
An integrated water-level sensor helps monitor the water level and supports safer operation of the distillation system.
4. Efficient Condenser
The specially designed condenser provides effective cooling of water vapour and helps produce distilled water at a comparatively low outlet temperature.
5. Acrylic Safety Screen
An acrylic safety screen provides a protective barrier around the glass assembly during operation, helping improve operator safety and visibility.
6. Easy Maintenance
The cabinet lid and acrylic safety screen are removable, allowing convenient access to the glass components for:
- Cleaning
- Inspection
- Maintenance
- Removal of deposits
- Routine servicing
7. High-Quality Distillate
The distillation process removes many dissolved impurities, including salts and minerals, from the feed water. The supplied specification identifies the resulting water as pyrogen-free distilled water.
8. Laboratory & Industrial Use
The OPX-215 is suitable for laboratory and industrial applications where distilled water is required for testing, preparation, cleaning, or other processes.
Working Principle
The Water Distillation Cabinet Model OPX-215 works on the principle of evaporation followed by condensation.
- Feed water enters the distillation system.
- The water is heated and converted into vapour.
- Many non-volatile impurities such as dissolved salts and minerals remain behind in the boiling chamber.
- The generated vapour passes through the glass condenser.
- The condenser removes heat from the vapour and converts it back into liquid water.
- The resulting distilled water is collected for laboratory or industrial use.
Distillation System Components
Boiler
The boiler provides the heating zone where feed water is converted into steam.
Horizontal Glass Assembly
The horizontal glass arrangement provides a visible and accessible distillation pathway.
Condenser
The specially designed condenser efficiently cools the generated vapour and converts it back into distilled water.
Water-Level Sensor
The integrated sensor helps monitor water availability and supports safe operation.
Acrylic Safety Screen
Provides a transparent protective barrier while allowing the operator to observe the distillation assembly.
Protective Cabinet
The cabinet encloses the distillation assembly and provides an organized installation for laboratory use.
Applications
The Water Distillation Cabinet Model OPX-215 is suitable for:
- Chemical laboratories
- Pharmaceutical laboratories
- Research laboratories
- Biotechnology laboratories
- Educational institutions
- Quality-control laboratories
- Industrial laboratories
- Analytical laboratories
- Reagent preparation
- Laboratory testing
- Glassware rinsing
- General distilled-water preparation
- Industrial water distillation processes
Advantages of OPX-215
- Fully enclosed cabinet design
- Horizontal glass distillation assembly
- Integrated water-level sensor
- Efficient condenser design
- Low-temperature distilled-water output
- Acrylic safety protection
- Removable cabinet lid
- Removable acrylic screen
- Easy access for glass-component cleaning
- High-quality distilled water production
- Suitable for laboratory and industrial applications
- Organized and professional laboratory installation
Why Choose Water Distillation Cabinet Model OPX-215?
The OPX-215 combines a visible glass distillation assembly with the protection and organization of an enclosed cabinet. Its water-level monitoring, efficient condenser, acrylic safety screen, and removable components make it practical for laboratories that require regular distilled-water production with convenient maintenance access.
