Description
Technical Specifications
| Specification | Details |
|---|---|

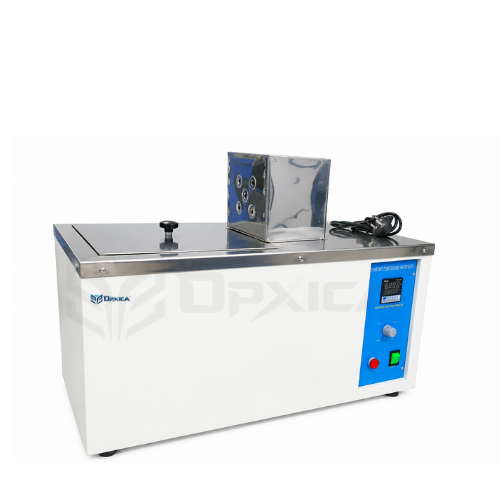

| Product Name | Constant Temperature Water Bath |
| Internal Model No. | OPX-CTWB Series |
| Product Type | Precision Laboratory Water Bath |
| Construction | Double-Wall Insulated Cabinet |
| Inner Chamber Material | Stainless Steel |
| Outer Body | Powder-Coated Mild Steel |
| Viewing Windows | Glass Windows on Two Opposite Sides |
| Temperature Control | Contact Thermometer with Relay |
| Optional Controller | Digital or Microprocessor PID Controller |
| Heating Method | Immersion Heating Elements |
| Water Circulation | Integrated Mechanical Stirrer |
| Temperature Range | Ambient +5°C to Approximately 100°C |
| Temperature Accuracy | Approximately ±1°C in Standard Configuration |
| Temperature Stability | Improved with Stirring and PID Control |
| Timer | Optional Programmable Digital Timer |
| Chamber Sizes | Three Standard Sizes |
| Display | Analog Standard / Digital Optional |
| Safety | Over-Temperature Protection, Configuration Dependent |
| Power Supply | 220–230 V AC, 50 Hz |
| Mounting | Bench-Top |
| Calibration Standard | Temperature Performance Checked Before Dispatch |
| Usage/Application | Heating, Incubation, Sample Conditioning and Laboratory Testing |
| Compliance | Manufactured According to Standard Laboratory Equipment Practices |
Features
- Double-wall insulated construction for improved thermal efficiency
- Stainless steel inner chamber for corrosion resistance and easy cleaning
- Glass viewing windows on opposite sides for convenient observation
- Integrated stirrer for uniform water circulation
- Contact thermometer with relay in the standard configuration
- Digital temperature controller available as an option
- Microprocessor PID controller available for tighter regulation
- Optional digital timer for controlled operating cycles
- Multiple chamber sizes for different sample volumes
- Suitable for continuous laboratory heating applications
Benefits
- Maintains stable heating conditions for repeatable laboratory results
- Reduces temperature variation through continuous water circulation
- Allows several samples to be processed in the same cycle
- Minimizes heat loss through insulated double-wall construction
- Reduces operator supervision when fitted with digital timer controls
- Stainless steel chamber lowers maintenance and cleaning effort
- Offers strong procurement value through standard and advanced configurations
Available Variants
| Chamber Size | Approximate Dimensions |
|---|---|
| Small | 425 × 250 × 225 mm |
| Medium | 450 × 375 × 375 mm |
| Large | 600 × 450 × 450 mm |
Final working capacity depends on the usable water level, vessel dimensions, sample arrangement, and internal fittings.
Optional Configurations
- Digital temperature indicator with controller
- PID digital temperature controller
- Microprocessor-based PID control system
- Programmable digital timer
- Automatic cut-off after the selected duration
- Over-temperature safety thermostat
- Stainless steel exterior
- Alternative chamber sizes
- Custom sample racks
- Export voltage configurations
Applications
- Pharmaceutical sample preparation
- Microbiology and culture media warming
- Serological testing
- Clinical and diagnostic laboratory work
- Food and beverage analysis
- Chemical reagent heating
- Biotechnology research
- Educational laboratory experiments
- Industrial quality-control testing
- Temperature conditioning of laboratory samples
Why Choose Our Products
- Precision-manufactured equipment tested for thermal and electrical performance
- Corrosion-resistant chamber built for routine laboratory use
- Multiple control options for standard and high-precision applications
- Custom chamber sizes and accessories available for institutional projects
- Reliable bulk supply for laboratories, distributors, universities, and industries
Frequently Asked Questions
What is a constant temperature water bath used for?
A constant temperature water bath is used to heat and maintain laboratory samples at a selected temperature. Common applications include reagent warming, sample incubation, pharmaceutical testing, culture media preparation, and analytical procedures.
Why is a stirrer used in the water bath?
The stirrer circulates water throughout the chamber and reduces hot or cold areas. This improves temperature uniformity and helps multiple samples receive more consistent thermal exposure.
What temperature range does the water bath support?
The typical operating range is from approximately 5°C above ambient temperature to near 100°C. The actual maximum temperature and control accuracy depend on the selected controller and chamber configuration.
What is the difference between contact and PID temperature control?
A contact thermometer with relay provides basic temperature regulation. A PID controller continuously adjusts heating output and generally offers improved stability, faster recovery, and closer control around the selected setpoint.
Is a digital timer available?
Yes. A programmable digital timer can be provided as an optional feature. It allows the operator to set a working duration and can stop the heating cycle after the programmed time.
How accurate is the constant temperature water bath?
The standard model offers accuracy of approximately ±1°C under normal operating conditions. PID-controlled versions can provide tighter temperature regulation, subject to chamber loading and laboratory conditions.
Can customized chamber sizes be manufactured?
Yes. Customized chamber dimensions, sample racks, controller types, exterior materials, and voltage requirements can be supplied for institutional and industrial projects.
Is the unit suitable for continuous operation?
The insulated construction, stainless steel chamber, and reliable heating system make it suitable for routine and extended laboratory use. Recommended water levels and operating limits should always be followed.
How should the water bath be maintained?
Drain and clean the chamber regularly, remove mineral deposits, and avoid operating the heater without sufficient water. The stirrer, controller, sensor, power cable, and safety system should also be inspected periodically.
What type of water should be used?
Clean distilled or demineralized water is recommended because it reduces mineral deposits, scaling, corrosion, and contamination inside the chamber. Water should be replaced regularly according to usage.
How is the water bath packed for shipment?
The unit is packed with protective cushioning and rigid outer packaging. Export orders may be supplied in reinforced wooden packing to protect the chamber, glass windows, controls, and accessories during transport.
Do you accept bulk and institutional orders?
Yes. Bulk supply is available for universities, pharmaceutical companies, hospitals, laboratories, distributors, research institutes, and government procurement projects.
Call to Action
Looking for a reliable constant temperature water bath for laboratory heating, incubation, sample conditioning, or analytical work? Opxica offers standard, digital, PID-controlled, and timer-equipped configurations in multiple chamber sizes. Contact the sales team today to request a quotation, discuss bulk procurement, or select a customized water bath for your laboratory.
