Description
Technical Specifications
| Specification | Details |
|---|---|

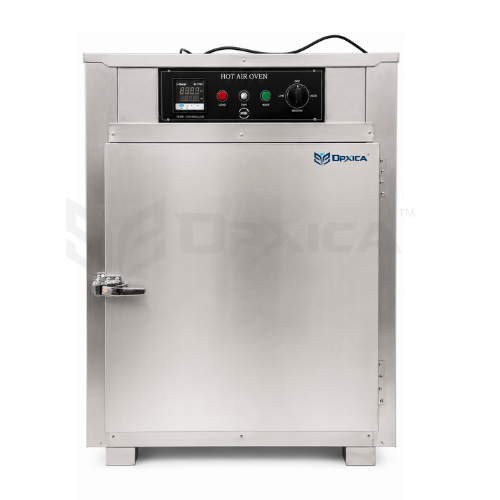

| Product Name | Laboratory Hot Air Oven |
| Internal Model No. | OPX-HAO Series |
| Product Type | Universal Laboratory Hot Air Oven |
| Construction | Double-Wall Insulated |
| Outer Body | Powder-Coated Mild Steel |
| Inner Chamber | Anodized Aluminum / Stainless Steel |
| Temperature Range | Ambient +5°C to 250°C |
| Temperature Accuracy | ±1°C |
| Temperature Controller | Analog Thermostat / Optional Digital PID Controller |
| Heating System | Tubular Heating Elements on Three Sides |
| Air Circulation | Natural Convection / Optional Forced Air Circulation |
| Shelves | Two Adjustable Shelves (Standard) |
| Display | Analog / Digital LED (Optional) |
| Insulation | High-Density Glass Wool Insulation |
| Door Type | Solid Insulated Door |
| Power Supply | 220–230V AC, 50 Hz |
| Timer | Optional Digital Timer |
| Safety | Over-Temperature Protection (Optional) |
| Usage/Application | Dry Heat Sterilization, Drying, Ageing, Heat Treatment |
| Compliance | Manufactured as per Standard Laboratory Equipment Practices |
Features
- Double-wall insulated construction for thermal efficiency
- Temperature range up to 250°C
- Anodized aluminum or stainless-steel inner chamber
- Uniform dry heat distribution throughout the chamber
- Heavy-duty tubular heating elements
- Adjustable removable shelves
- Digital PID temperature controller available as an option
- Durable powder-coated steel exterior
- Multiple chamber capacities
- Suitable for continuous laboratory operation
Benefits
- Provides reliable dry-heat sterilization for laboratory equipment
- Maintains consistent temperature for repeatable laboratory results
- Reduces operating costs through efficient insulation
- Corrosion-resistant chamber offers long service life
- Multiple chamber sizes suit different laboratory workloads
- Supports drying, curing, ageing, and heat treatment applications
- Delivers dependable performance for institutional and industrial laboratories
Available Variants
| Chamber Size | Approximate Capacity | Shelves |
|---|---|---|
| 300 × 300 × 300 mm | 28 Litres | 2 |
| 350 × 350 × 350 mm | 45 Litres | 2 |
| 400 × 400 × 400 mm | 65 Litres | 2 |
| 450 × 450 × 450 mm | 95 Litres | 2 |
| 600 × 450 × 450 mm | 125 Litres | 2 |
| 600 × 600 × 600 mm | 224 Litres | 2 |
| 900 × 600 × 450 mm | 252 Litres | 2 |
| 900 × 600 × 600 mm | 336 Litres | 2 |
| 900 × 900 × 900 mm | 720 Litres | 2 |
Optional Configurations
- Digital Temperature Controller
- PID Microprocessor Controller
- Forced Air Circulation System
- Digital Timer
- Stainless Steel Inner Chamber
- Over-Temperature Safety Thermostat
- Observation Window
- Additional Shelves
- Automatic Voltage Stabilizer
- Customized Chamber Sizes
Applications
- Dry Heat Sterilization
- Glassware Drying
- Pharmaceutical Laboratories
- Microbiology Laboratories
- Hospitals
- Biotechnology Research
- Universities & Colleges
- Food Testing Laboratories
- Chemical Industries
- Industrial Quality Control
- Material Testing
- Research Institutes
Why Choose Our Products
- Precision-engineered for reliable temperature control
- Durable insulated construction for continuous laboratory use
- Available in multiple capacities with customization options
- Strict quality inspection before dispatch
- Reliable technical support and bulk supply capability
Frequently Asked Questions
What is a Laboratory Hot Air Oven used for?
A Laboratory Hot Air Oven is used for dry heat sterilization, glassware drying, ageing studies, heat treatment, curing, and laboratory sample conditioning. It is widely used in pharmaceutical, microbiology, research, and industrial laboratories.
What temperature range does the oven support?
The oven operates from approximately 5°C above ambient up to 250°C, making it suitable for laboratory drying and dry-heat sterilization applications.
Can the oven be supplied with a digital PID controller?
Yes. Digital PID temperature controllers, programmable timers, forced air circulation systems, and additional safety features are available as optional configurations.
What chamber sizes are available?
Standard capacities range from 28 litres to 720 litres. Customized chamber sizes and shelving arrangements can also be manufactured according to laboratory requirements.
Is the oven suitable for continuous laboratory operation?
Yes. The insulated cabinet, durable heating elements, and robust construction make it suitable for continuous laboratory use when operated according to recommended guidelines.
Can customized models be manufactured?
Yes. Customized chamber dimensions, voltage specifications, temperature controllers, shelving, and additional accessories are available for institutional and industrial projects.
How should the hot air oven be maintained?
Regular cleaning of the chamber, inspection of heating elements, verification of temperature accuracy, and periodic servicing of electrical components help maintain long-term performance.
Do you supply Hot Air Ovens in bulk?
Yes. Bulk orders are accepted for universities, pharmaceutical companies, hospitals, research institutes, government laboratories, OEM partners, distributors, and industrial facilities.
How is the oven packed for shipment?
Each oven is packed using protective industrial packaging. Export models are supplied in reinforced wooden crates to protect the chamber and control panel during transportation.
What is the expected delivery time?
Delivery depends on capacity, optional accessories, customization requirements, and order quantity. Standard models generally have shorter production and dispatch schedules.
