Description
Technical Specifications
| Specification | Details |
|---|---|

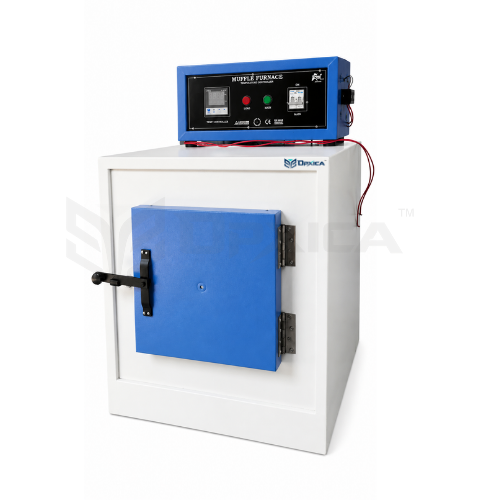

| Product Name | Industrial Muffle Furnace |
| Internal Model No. | OPX-211 |
| Product Type | High Temperature Industrial Furnace |
| Maximum Temperature | 1200°C |
| Recommended Working Temperature | 1100°C |
| Heating Elements | Kanthal A-1 (Four-Side Heating) |
| Chamber Type | Grooved Refractory Chamber |
| Temperature Sensor | Chromel-Alumel Thermocouple |
| Temperature Control | Pyrometer |
| Optional Controller | Digital PID / Profile Controller |
| Timer | Up to 2 Hours |
| Outer Body | Heavy Gauge Powder-Coated Mild Steel |
| Insulation | High-Temperature Ceramic Insulation |
| Power Supply | 230V AC, 50Hz |
| Installation | Floor / Bench Mounted |
Features
- Maximum temperature up to 1200°C
- Continuous working temperature 1100°C
- Four-side Kanthal A-1 heating elements
- Uniform heat distribution
- Heavy-duty powder-coated steel body
- Grooved refractory chamber
- Chromel-Alumel thermocouple
- Integrated timer up to 2 hours
- Fast heating and excellent thermal efficiency
- Suitable for continuous industrial operation
Benefits
- Delivers consistent high-temperature performance
- Uniform heating for accurate laboratory results
- Reduces energy loss with efficient insulation
- Handles demanding industrial heating applications
- Durable construction for long service life
- Optional programmable temperature control
- Suitable for continuous production and research use
Available Variants
| Model | Chamber Size (W × H × D) | Power Rating |
|---|---|---|
| OPX-211A | 4″ × 4″ × 9″ | 3.0 kW |
| OPX-211B | 5″ × 5″ × 10″ | 4.0 kW |
| OPX-211C | 6″ × 6″ × 12″ | 4.5 kW |
| OPX-211D | 8″ × 8″ × 12″ | 6.0 kW |
| OPX-211E | 9″ × 9″ × 18″ | Custom |
Optional Configurations
- Digital PID Temperature Controller
- Profile Controller with Ramp & Soak Facility
- Programmable Heating Cycles
- Digital Timer
- Data Logger
- USB / RS-485 Communication
- Export Voltage Models
- Customized Chamber Sizes
Applications
- Heat Treatment
- Ash Content Analysis
- Calcination
- Annealing
- Ceramic Processing
- Metallurgical Testing
- Cement Laboratories
- Chemical Laboratories
- Pharmaceutical Industries
- Research Institutes
- Universities & Colleges
- Industrial Quality Control
Why Choose Our Products
- High-quality Kanthal A-1 heating elements
- Uniform four-side heat distribution
- Heavy-duty industrial construction
- Reliable operation up to 1200°C
- Optional programmable PID temperature control
- Multiple chamber sizes available
- Custom-built solutions for industrial applications
Frequently Asked Questions
What is an Industrial Muffle Furnace used for?
It is used for high-temperature applications such as heat treatment, calcination, ash determination, ceramic firing, metallurgical testing, and material analysis.
What is the maximum operating temperature?
The furnace reaches a maximum temperature of 1200°C with a recommended continuous working temperature of 1100°C.
What type of heating elements are used?
The furnace uses Kanthal A-1 heating elements arranged on all four sides for uniform heating.
Can programmable temperature control be added?
Yes. Optional Digital PID and Profile Controllers with Ramp & Soak programming are available.
How is temperature monitored?
Temperature is monitored using a Chromel-Alumel thermocouple with pyrometer control as standard.
Which industries use this furnace?
It is widely used in metallurgy, ceramics, cement, pharmaceuticals, chemicals, universities, research laboratories, and industrial quality-control facilities.
Can customized chamber sizes be supplied?
Yes. Customized chamber dimensions, power ratings, voltage options, and controller configurations are available.
Do you supply bulk quantities?
Yes. Opxica supplies Industrial Muffle Furnaces in bulk for laboratories, research institutes, OEMs, distributors, and manufacturing industries.
Call to Action
Looking for a high-performance Industrial Muffle Furnace for laboratory or industrial thermal processing? Opxica manufactures robust furnaces with temperatures up to 1200°C, advanced heating technology, and customizable configurations to meet your exact application requirements. Contact us today for pricing, technical consultation, or bulk procurement.
