Description
Technical Specifications
| Specification | Details |
|---|---|

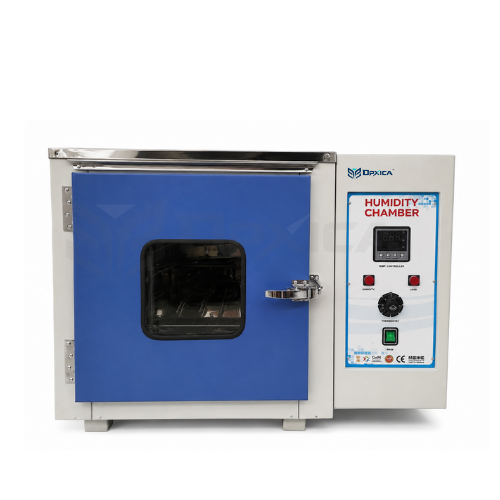

| Product Name | Laboratory Humidity Chamber |
| Internal Model No. | OPX-214 |
| Product Type | Temperature & Humidity Chamber |
| Temperature Range | 5°C Above Ambient to 60°C |
| Humidity Range | 30% to 90% RH |
| Temperature Controller | Digital Temperature Controller |
| Humidity Controller | Digital Humidity Controller |
| Chamber Construction | Double-Wall Insulated Cabinet |
| Inner Chamber | Stainless Steel |
| Outer Body | Powder-Coated Mild Steel |
| Air Circulation | Forced Air Circulation |
| Display | Digital LED Display |
| Sensor | Digital Temperature & Humidity Sensor |
| Shelves | Adjustable Stainless-Steel Shelves |
| Power Supply | 220–230V AC, 50 Hz |
| Installation | Floor Standing |
| Application | Environmental Testing, Stability Studies & Sample Conditioning |
| Compliance | Manufactured as per Standard Laboratory Equipment Practices |
Features
- Temperature range from 5°C above ambient to 60°C
- Relative humidity control from 30% to 90% RH
- Stainless-steel inner chamber
- Double-wall insulated construction
- Digital temperature and humidity control
- Uniform air circulation for consistent chamber conditions
- Adjustable stainless-steel shelves
- LED digital display
- Durable powder-coated exterior
- Suitable for continuous laboratory operation
Benefits
- Provides stable environmental conditions for accurate testing
- Improves repeatability of laboratory experiments
- Supports long-term stability and conditioning studies
- Reduces maintenance with corrosion-resistant construction
- Suitable for diverse laboratory applications
- Multiple chamber capacities for different testing requirements
- Excellent long-term value for research and industrial laboratories
Available Variants
| Model | Chamber Size (mm) | Capacity |
|---|---|---|
| OPX-214A | 455 × 455 × 455 | 95 Litres |
| OPX-214B | 455 × 455 × 710 | 147 Litres |
| OPX-214C | 605 × 605 × 605 | 225 Litres |
| OPX-214D | 605 × 605 × 910 | 335 Litres |
Optional Configurations
- Digital Humidity Indicator
- Digital Temperature Controller
- Microprocessor PID Temperature Controller
- Combined Temperature & Humidity Digital Display
- Automatic Electronic Humidity Control
- 3 kVA Automatic Voltage Stabilizer
- Data Logger
- USB Data Export
- RS-485 Communication
- Customized Chamber Sizes
Applications
- Pharmaceutical Laboratories
- Stability Testing
- Seed Testing Laboratories
- Food Testing Laboratories
- Biotechnology Research
- Electronics Testing
- Textile Testing
- Packaging Evaluation
- Environmental Simulation
- Universities & Colleges
- Industrial Quality Control
- Research Institutes
Why Choose Our Products
- Precision temperature and humidity control
- Durable stainless-steel chamber construction
- Multiple capacities for laboratory requirements
- Digital monitoring with optional PID control
- Reliable performance for continuous laboratory operation
- Customization and bulk supply support
Frequently Asked Questions
What is a Laboratory Humidity Chamber used for?
A Laboratory Humidity Chamber is used for environmental simulation, stability testing, material conditioning, shelf-life studies, and quality-control testing under controlled temperature and humidity conditions.
What temperature and humidity range does it support?
The chamber operates from 5°C above ambient to 60°C with humidity control between 30% and 90% RH, making it suitable for a wide range of laboratory applications.
What chamber capacities are available?
Standard capacities include 95 L, 147 L, 225 L, and 335 L. Customized chamber sizes can also be manufactured.
Can the chamber be supplied with PID control?
Yes. Digital PID temperature controllers, humidity indicators, and combined temperature-humidity displays are available as optional configurations.
Is an automatic voltage stabilizer available?
Yes. A 3 kVA automatic voltage stabilizer is recommended and can be supplied as an optional accessory.
Can customized models be manufactured?
Yes. Customized chamber dimensions, controller options, shelving arrangements, voltage specifications, and data logging systems are available according to customer requirements.
Is the chamber suitable for continuous operation?
Yes. The insulated cabinet, stainless-steel chamber, and digital control system are designed for reliable long-duration laboratory operation.
Do you supply humidity chambers in bulk?
Yes. Bulk orders are available for pharmaceutical companies, universities, research institutes, testing laboratories, industrial facilities, distributors, and government organizations.
Call to Action
Looking for a dependable Laboratory Humidity Chamber for environmental testing, stability studies, and sample conditioning? Opxica offers high-performance humidity chambers in multiple capacities with digital temperature and humidity control, customizable configurations, and competitive bulk pricing. Contact our team today to request a quotation or discuss your laboratory requirements.
