Description
Technical Specifications
| Parameter | Specification |
|---|---|

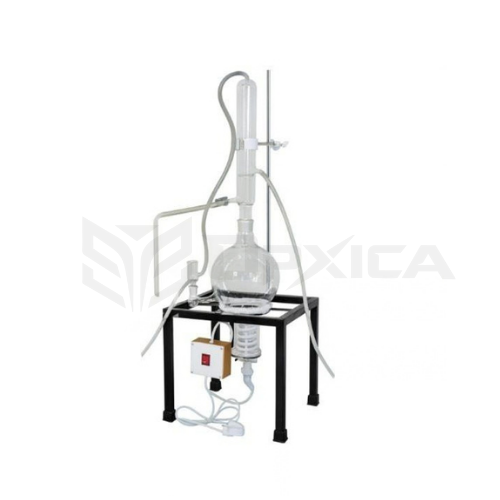

| Product Name | Water Still Vertical (Single Stage) |
| Model | OPX-228 |
| Type | Vertical Laboratory Water Still |
| Distillation Type | Single Stage |
| Configuration | Vertical / Upright |
| Glass Assembly | Vertical Glass Assembly |
| Design Standard | N.P.L. design, as specified |
| Heating System | Built-in Bottom Heater |
| Safety System | Low-Water Cut-Off Device |
| Internal Surface | Filleted / Smooth Inner Surfaces |
| Operating Principle | Evaporation & Condensation |
| Output | High-Purity Distilled Water |
| Maintenance | Easy Cleaning and Maintenance |
| Application | Laboratory, Research, Clinical, Educational & Industrial |
Note: Heater power, water distillation capacity/output, voltage, dimensions, weight, condenser specifications, and other quantitative parameters were not supplied, so they have not been estimated or added.
Key Features
- Single-stage vertical water distillation system
- Space-saving upright configuration
- Vertical glass assembly designed as per N.P.L. standards
- Built-in bottom heater for efficient water heating
- Low-water cut-off device for enhanced operational safety
- Filleted inner surfaces for easier cleaning
- Smooth internal design for convenient maintenance
- Designed for production of high-purity distilled water
- Suitable for laboratory and industrial applications
- Single-stage configuration for routine water purification requirements
Working Principle
The OPX-228 operates on the basic principle of evaporation followed by condensation.
- Water is introduced into the distillation system.
- The built-in bottom heater heats the water.
- Water changes into steam during heating.
- Steam passes through the distillation/condenser assembly.
- The steam is cooled and condensed back into liquid water.
- The resulting distilled water is collected for laboratory use.
Vertical Glass Assembly
The OPX-228 uses a vertical glass assembly designed as per N.P.L. standards, providing a clear and practical arrangement for the distillation process.
The upright design helps reduce the equipment footprint while providing convenient access for observation, cleaning, and routine maintenance.
Built-In Bottom Heater
The integrated bottom heater supplies the heat required to convert water into steam. Consistent heating is essential for maintaining the distillation process and supporting reliable distilled-water production.
Low-Water Cut-Off Protection
The unit is equipped with a low-water cut-off device designed to protect the heater when the water level becomes insufficient. This helps reduce the risk of heater damage caused by operation without adequate water.
Easy Cleaning and Maintenance
The internal surfaces incorporate filleted/smooth profiles, helping minimize difficult-to-clean corners and making routine cleaning more convenient.
Applications
The OPX-228 Vertical Single Stage Water Still is suitable for:
- Research laboratories
- Clinical laboratories
- Pharmaceutical laboratories
- Chemical laboratories
- Microbiology laboratories
- Educational institutions
- Quality-control laboratories
- Industrial laboratories
- Testing facilities
- General laboratory water preparation
Advantages
Space-Saving Vertical Design
The upright configuration requires relatively little bench space and is suitable for laboratories where available working area is limited.
Single-Stage Distillation
The single-stage configuration provides a practical solution for routine distilled-water requirements.
Easy Cleaning
Filleted inner surfaces simplify cleaning and help support convenient routine maintenance.
Heater Protection
The low-water cut-off device provides protection against inadequate-water operation.
Convenient Monitoring
The vertical glass assembly allows visual observation of the distillation process.
Single Stage vs Double Stage
The OPX-228 is the single-stage version. A double-stage water still adds another distillation stage and may be selected where a different purification requirement is specified.
| Feature | OPX-228 Single Stage |
|---|---|
| Distillation stages | 1 |
| Design | Vertical |
| Glass assembly | Vertical |
| Heater | Built-in bottom heater |
| Low-water protection | Yes |
| Space requirement | Compact vertical configuration |
| Typical use | Routine distilled-water production |
Product Benefits
- Compact laboratory footprint
- Efficient vertical configuration
- Single-stage distillation
- Built-in bottom heating
- Low-water safety protection
- Easy-to-clean internal surfaces
- N.P.L.-designed vertical glass assembly
- Suitable for routine laboratory operation
- Designed for high-purity distilled-water production
