Description
Product Specifications
| Specification | Details |
|---|---|

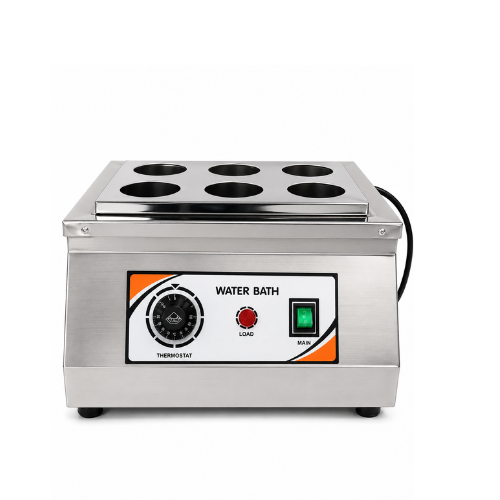

| Product Name | Rectangular Water Bath – 6 Holes |
| Product Type | Single Wall Laboratory Water Bath |
| Construction | Single-Wall Stainless Steel |
| Inner Size | 10″ × 14″ × 4″ (Approx. 300 × 250 × 100 mm) |
| Capacity | Approx. 8 Litres |
| Number of Holes | 6 |
| Hole Diameter | 3″ (75 mm) |
| Lid Type | Removable Concentric Rings |
| Temperature Control | Thermostatic |
| Heating Method | Electric Immersion Heater |
| Power Supply | 220–240V AC, 50 Hz |
| Installation | Bench Top |
| Applications | Heating, Boiling, Incubation & Sample Preparation |
Available Variants
- OPX-145A – 6 Holes | 8 Litres
- OPX-145B – 12 Holes | 15 Litres
- Custom capacities available upon request
SKU System
- WB6-08L
- WB12-15L
FAQs
What is a Rectangular Water Bath used for?
A Rectangular Water Bath is used for controlled heating, boiling, incubation, evaporation, and sample preparation where gentle and uniform heating is required.
Which laboratories commonly use this water bath?
It is widely used in pharmaceutical laboratories, research institutes, hospitals, biotechnology laboratories, food testing laboratories, educational institutions, and industrial quality control facilities.
Why are concentric rings provided?
The removable concentric rings allow different sizes of beakers and flasks to fit securely while reducing heat loss and improving heating efficiency.
What is the capacity of the 6-hole model?
The standard 6-hole model has an approximate 8-litre water capacity with an internal size of approximately 300 × 250 × 100 mm.
Can the water bath operate continuously?
Yes. The equipment is designed for continuous laboratory operation during routine heating, incubation, and boiling applications.
Can the unit be customized?
Yes. Different capacities, hole configurations, electrical specifications, and temperature control options can be supplied according to laboratory requirements.
Why Choose Our Products
- Premium stainless steel construction
- Uniform and reliable heating performance
- Precision-engineered laboratory equipment
- Strict quality inspection before dispatch
- Custom-built configurations available
- Reliable technical support and OEM manufacturing
- Suitable for laboratories, research institutes, universities, and industrial facilities
Call to Action
Looking for a reliable Rectangular Water Bath – 6 Holes for your laboratory? Opxica offers high-quality laboratory water baths with durable stainless steel construction, uniform heating, customizable configurations, and competitive pricing. Contact us today to request a quotation for hospitals, pharmaceutical companies, research laboratories, educational institutions, distributors, or OEM requirements.
