Description
Technical Specifications
| Specification | Details |
|---|---|
| Model | PHM-111 |

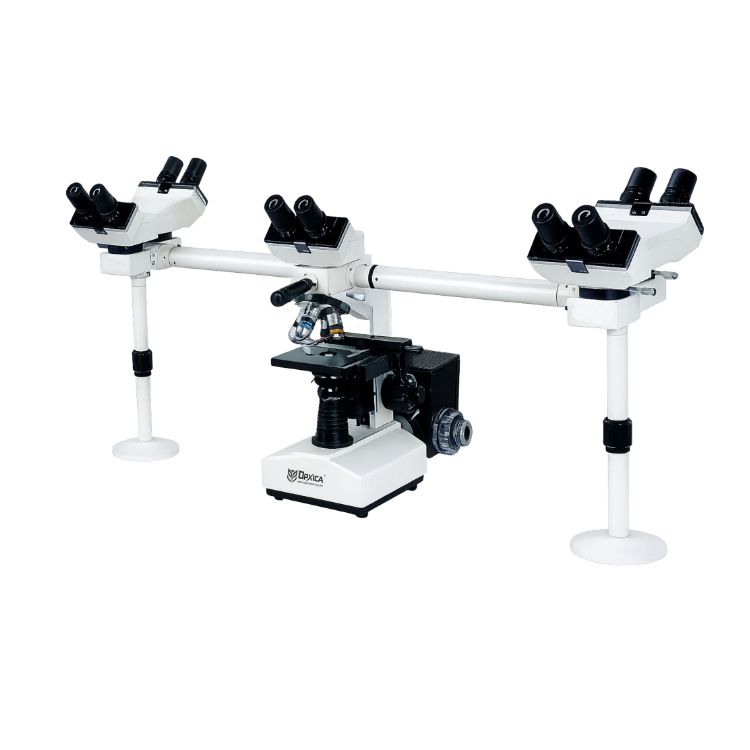

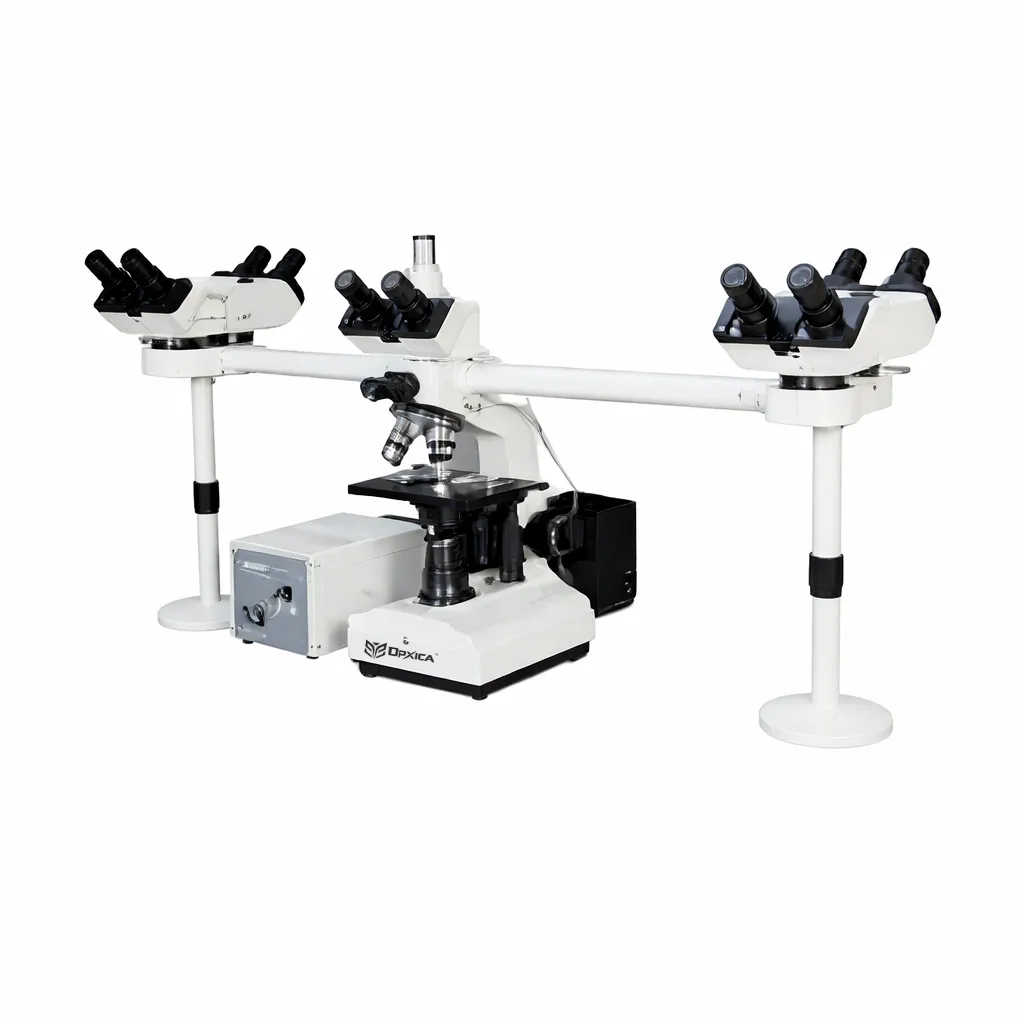

| Product Name | Penta Head Microscope PHM-111 |
| Brand | OPXICA |
| Head Type | 5 Binocular Head System |
| Eyepiece | WF 10X / 18 mm Wide Field |
| Objectives | 4X, 10X, 40X, 100X Achromatic |
| Nosepiece | Quadruple Revolving Nosepiece |
| Condenser | Swing-Out Condenser N.A. 0.9 / 0.25 |
| Focusing System | Coaxial Coarse & Fine Focusing |
| Fine Focus Precision | 0.002 mm |
| Stage Type | Plain Layer Mechanical Stage |
| Stage Size | 140 × 140 mm |
| Illumination | 6V / 30W Halogen Lamp |
| Pointer | Adjustable LED Pointer |
| Application | Medical Teaching, Pathology, Research, Laboratory Demonstration |
Key Features
- Advanced Penta Head Microscope designed for collaborative learning.
- Five-user viewing system allows simultaneous specimen observation.
- High-quality achromatic objectives provide sharp and clear images.
- Wide-field eyepieces ensure comfortable viewing during long sessions.
- Precision coaxial focusing system for accurate specimen examination.
- Built-in LED pointer assists instructors during demonstrations.
- Bright halogen illumination delivers uniform specimen lighting.
- Durable mechanical stage ensures smooth slide movement.
- Ideal for medical colleges, dental colleges, and laboratory training centers.
- Manufactured with the trusted quality standards of OPXICA.
Working Purpose
The Penta Head Microscope is designed to facilitate group learning, laboratory training, and scientific demonstrations by allowing multiple users to view the same specimen simultaneously. It eliminates the need for individual microscopes during practical sessions and improves interaction between instructors and students.
The Penta Head Microscope PHM-111 is commonly used for:
- Medical education and teaching
- Pathology training programs
- Dental laboratory demonstrations
- Histology and microbiology studies
- Research and development laboratories
- Clinical diagnostic training
- University practical sessions
- Group specimen analysis
- Scientific workshops and seminars
Its multi-view design helps instructors explain specimen structures more effectively while ensuring every participant observes identical details.
Wrapping Notes
The Penta Head Microscope PHM-111 is a professional-grade educational microscope developed to enhance collaborative learning and laboratory demonstrations. Combining a five-head viewing system, superior optics, precise focusing controls, and powerful illumination, this Penta Head Microscope delivers exceptional performance in academic and research environments. Whether used in medical colleges, pathology laboratories, or scientific training centers, the PHM-111 provides reliable, accurate, and efficient group microscopy experiences.
