Fluorescence Microscope: Working Principle, Parts, Types, Applications & Uses
What Is a Fluorescence Microscope?
A fluorescence microscope is an optical imaging instrument that uses an excitation light source, optical filters, a dichroic mirror, objective lens, and observation or imaging system to detect fluorescence from a specimen.
The specimen may naturally contain fluorescent substances, known as autofluorescent materials, or may be treated with fluorescent dyes, stains, antibodies, probes, or other fluorescent labels.
When the labelled specimen receives light of an appropriate wavelength, the fluorescent molecules absorb this energy and become excited. They subsequently release part of the absorbed energy as light at a longer wavelength. The microscope separates the excitation light from the emitted fluorescence so that the fluorescent signal can be observed.
Basic Principle
Excitation Light → Fluorescent Molecules → Emitted Fluorescence → Optical Filtering → Image
The key feature of fluorescence microscopy is that the microscope does not simply illuminate the entire specimen and observe reflected light. Instead, it detects the specific light emitted by fluorescent molecules.
How Does a Fluorescence Microscope Work?
The working principle can be understood through six basic stages.
1. Generation of Excitation Light
The microscope first produces illumination at wavelengths suitable for exciting the fluorescent material in the specimen.
Depending on the microscope design, the illumination system may use an LED, mercury arc lamp, xenon lamp, metal-halide source, or other specialized light source.
The selected wavelength depends on the fluorophore being used.
2. Excitation Filter Selects the Required Wavelength
The light produced by the illumination source may contain a range of wavelengths. The excitation filter allows the required wavelength range to pass while blocking unwanted wavelengths.
For example, a fluorescence system may be configured to provide blue, violet, ultraviolet, or green excitation depending on the fluorophore.
3. Dichroic Mirror Directs the Excitation Light
The selected excitation light reaches the dichroic mirror, also called a dichroic beamsplitter.
The dichroic mirror is designed to reflect the excitation wavelength toward the specimen while transmitting the longer-wavelength fluorescence emitted by the specimen toward the detection path.
In a typical epi-fluorescence microscope, the excitation light travels through the objective toward the specimen.
4. Fluorescent Molecules Become Excited
When the excitation light reaches the specimen, fluorescent molecules absorb the incoming energy.
After excitation, these molecules emit light at a longer wavelength than the excitation light. This emitted light is called fluorescence.
For example:
Shorter-wavelength excitation → Fluorescent molecule → Longer-wavelength emission
The exact wavelengths depend on the fluorescent dye or fluorophore being used.
5. Emission Filter Removes Unwanted Light
The emitted fluorescence travels back through the optical system and reaches the emission filter.
The emission filter blocks unwanted excitation light and other wavelengths while allowing the required fluorescence signal to pass.
This filtering is essential because the fluorescence signal can be much weaker than the original excitation illumination.
6. Objective and Detector Form the Image
The objective lens collects the emitted fluorescence from the specimen and forms the optical image.
The image can then be viewed through the eyepiece or captured using a scientific camera connected to a computer and imaging software.

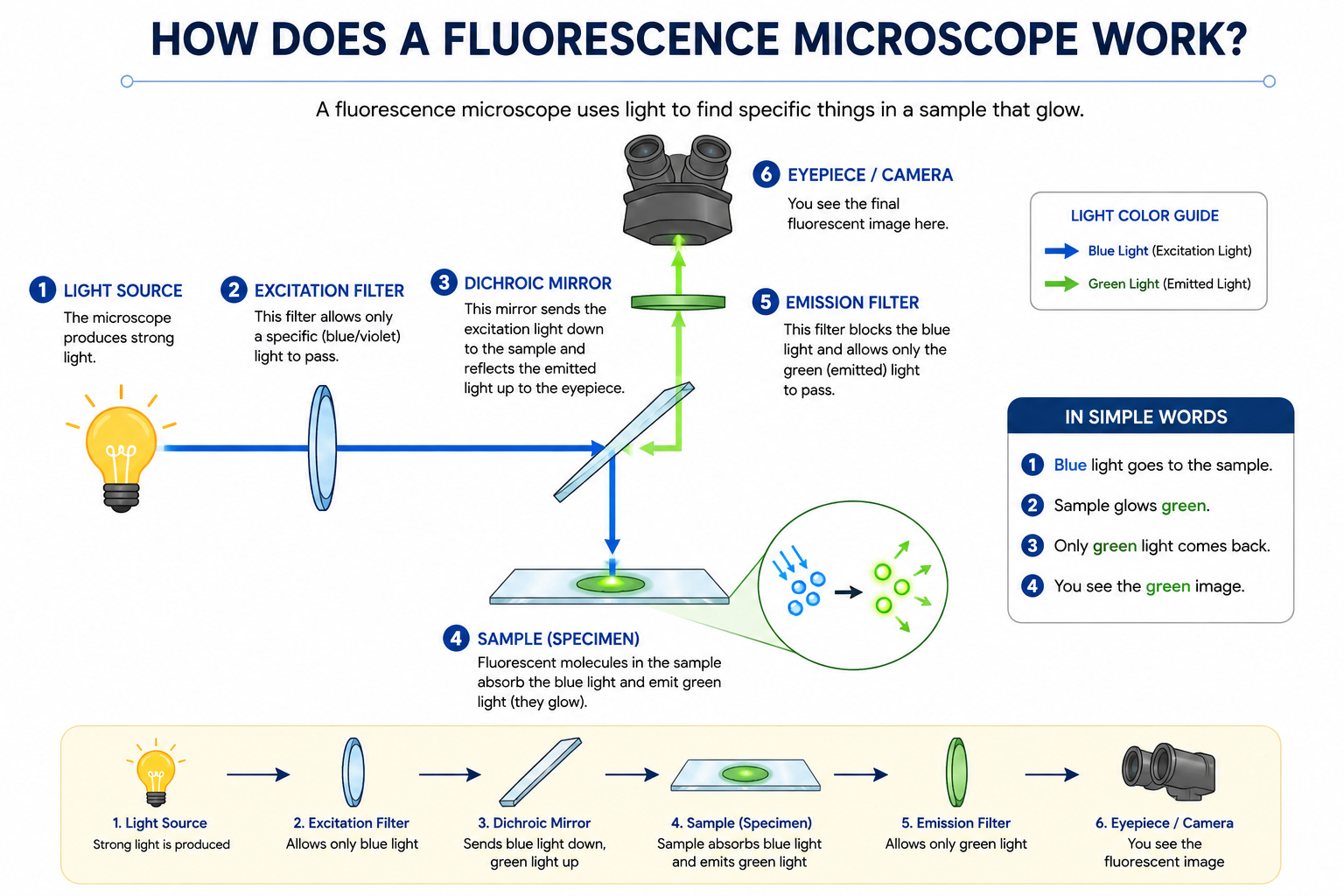

Fluorescence Microscope Working Diagram
Recommended diagram to insert here:
Light Source → Excitation Filter → Dichroic Mirror → Objective → Fluorescent Sample → Objective → Dichroic Mirror → Emission Filter → Eyepiece / Camera
Easy Explanation of the Optical Path
Blue/UV Excitation Light
Light Source
↓
Excitation Filter
↓
Dichroic Mirror
↓
Objective Lens
↓
Fluorescent Sample
Green/Longer-Wavelength Emitted Light
Fluorescent Sample
↓
Objective Lens
↓
Dichroic Mirror
↓
Emission Filter
↓
Eyepiece / Camera
↓
Fluorescent Image
Important: The colours used in a diagram are only for easy understanding. Actual excitation and emission wavelengths depend on the fluorophore and filter set.
Fluorescence Microscope Parts and Their Functions
A fluorescence microscope consists of several optical, mechanical, illumination, and imaging components. Each part has a specific role in producing and detecting fluorescence.
1. Light Source
The light source generates the excitation illumination required to activate fluorescent molecules.
Common illumination sources include:
- LED illumination
- Mercury arc lamps
- Xenon lamps
- Metal-halide lamps
- Other specialized fluorescence illumination systems
Modern systems commonly use LEDs because they can provide stable illumination, long operating life, and controlled wavelength selection.
2. Excitation Filter
The excitation filter selects the wavelength range required to excite a particular fluorophore.
Its primary function is to:
- Select excitation wavelengths
- Remove unwanted wavelengths
- Provide suitable illumination for the fluorescent label
Different fluorophores require different excitation wavelengths, so filter selection is an important part of fluorescence microscopy.
3. Dichroic Mirror
The dichroic mirror is one of the most important optical components in an epi-fluorescence microscope.
It separates the excitation and emission light based on wavelength.
It generally:
- Reflects excitation light toward the specimen
- Transmits emitted fluorescence toward the detector
Because it performs wavelength-selective reflection and transmission, it is also called a dichroic beamsplitter.
4. Objective Lens
The objective lens focuses excitation light onto the specimen and collects the emitted fluorescence.
It also determines important imaging characteristics such as:
- Magnification
- Numerical aperture
- Resolution
- Light-collection efficiency
- Working distance
For fluorescence microscopy, objective selection is particularly important because fluorescence signals can be relatively weak.
5. Specimen or Sample
The specimen contains the fluorescent material being investigated.
The fluorescence may originate from:
- Fluorescent dyes
- Fluorescent antibodies
- Fluorescent proteins
- Molecular probes
- Naturally fluorescent structures
- Fluorescent stains
The specimen is generally prepared on a microscope slide or another suitable imaging substrate.
6. Emission Filter
The emission filter separates the desired fluorescence from unwanted excitation light and other wavelengths.
Its main purpose is to allow the emitted fluorescence to reach the observation or imaging system while blocking unwanted light.
7. Eyepiece
The eyepiece, or ocular lens, allows the user to visually observe the magnified fluorescent image.
Binocular microscope configurations generally provide two eyepieces for comfortable observation.
8. Camera Port and Scientific Camera
A camera can be connected to the microscope to digitally capture fluorescence images.
Digital imaging allows users to:
- Record observations
- Compare samples
- Perform image analysis
- Store images
- Prepare reports
- Share research results
9. Filter Cube / Fluorescence Filter Set
Many fluorescence microscopes use interchangeable filter cubes or fluorescence filter sets.
A typical filter set contains:
- Excitation filter
- Dichroic mirror
- Emission filter
Different filter sets can be selected for different fluorophores.
10. Condenser
The condenser is primarily associated with transmitted-light illumination. In an epi-fluorescence configuration, the excitation light is typically delivered through the objective, so the conventional transmitted-light condenser is not the primary component responsible for fluorescence excitation.
11. Microscope Stage
The stage supports and positions the specimen.
Depending on the microscope, the stage may provide:
- X-Y movement
- Z-axis focusing
- Mechanical slide positioning
- Fine specimen adjustment
12. Focusing Mechanism
The focusing mechanism moves the objective or specimen to bring the required area into sharp focus.
Fine focusing is especially important when examining small fluorescent structures.
What Is a Fluorophore?
A fluorophore is a fluorescent chemical compound or molecular group that can absorb light at a particular wavelength and subsequently emit light at a longer wavelength.
Fluorophores are central to fluorescence microscopy.
They can be present naturally in a specimen or introduced through fluorescent stains, antibodies, probes, or fluorescent proteins.
A fluorophore generally has two important spectral characteristics:
Excitation Wavelength
The wavelength of light that efficiently excites the fluorophore.
Emission Wavelength
The wavelength range of light released by the fluorophore after excitation.
The emission wavelength is generally longer than the excitation wavelength. This difference is related to the loss of some absorbed energy before fluorescence emission.
What Is the Difference Between Excitation and Emission Light?
Understanding excitation and emission light is essential for understanding fluorescence microscopy.
| Feature | Excitation Light | Emission Light |
|---|---|---|
| Purpose | Excites the fluorophore | Produced by the excited fluorophore |
| Origin | Microscope illumination system | Fluorescent molecule |
| Wavelength | Usually shorter | Usually longer |
| Filter | Excitation filter | Emission filter |
| Direction | Toward the specimen | From specimen toward detector |
Simple Example
Imagine a fluorescent molecule that is excited by blue light.
Blue excitation light → Fluorophore absorbs energy → Green fluorescence is emitted
The microscope uses filters to prevent the original blue excitation light from overwhelming the weaker green fluorescence signal.
What Is a Fluorescence Filter Cube?
A fluorescence filter cube is an optical assembly containing the filters required to separate excitation and emission wavelengths.
A typical filter cube contains:
Excitation Filter + Dichroic Mirror + Emission Filter
Different filter cubes are designed for different fluorophores.
For example, a microscope may have separate filter configurations for:
- DAPI
- FITC
- TRITC
- Cy3
- Cy5
- Other fluorescent labels
The actual spectral specifications should always be matched with the fluorophore being used.
Types of Fluorescence Microscopes
Fluorescence microscopy can be implemented in several microscope configurations.
1. Epi-Fluorescence Microscope
Epi-fluorescence microscopy is one of the most common fluorescence microscopy configurations.
In this design, excitation light is directed through the objective toward the specimen. The same objective then collects the emitted fluorescence.
The optical path can therefore be represented as:
Light Source → Excitation Filter → Dichroic Mirror → Objective → Sample
Then:
Sample → Objective → Dichroic Mirror → Emission Filter → Detector
This configuration is widely used for biological and biomedical fluorescence imaging.
2. Widefield Fluorescence Microscope
A widefield fluorescence microscope illuminates a relatively broad area of the specimen and collects fluorescence from the illuminated field.
It can provide rapid imaging and is commonly used for routine fluorescence observation and imaging.
3. Confocal Fluorescence Microscope
A confocal microscope uses focused illumination and spatial filtering to reduce out-of-focus fluorescence.
This allows optical sectioning and can be useful for imaging thicker specimens and constructing three-dimensional datasets.
4. Multiphoton Fluorescence Microscope
Multiphoton microscopy uses longer-wavelength excitation and nonlinear optical processes to excite fluorophores.
It is particularly useful for specialized biological research involving deeper imaging in suitable specimens.
Fluorescence Microscope vs Compound Microscope
Although both instruments use optical objectives and magnification, their imaging principles are different.
| Feature | Compound Microscope | Fluorescence Microscope |
|---|---|---|
| Illumination | Usually transmitted visible light | Excitation light |
| Main image source | Transmitted/reflected light | Fluorescent emission |
| Fluorescent labels | Not essential | Commonly used |
| Filters | Standard optical filters may be used | Excitation, dichroic and emission filters |
| Background | Usually illuminated | Can appear dark relative to fluorescent structures |
| Typical use | General microscopy | Specific fluorescence-based imaging |
A fluorescence microscope can also incorporate conventional transmitted-light imaging, depending on its configuration.
Applications of Fluorescence Microscopy
Fluorescence microscopy is used in many areas of biological and biomedical science.
Microbiology
Fluorescent stains and probes can be used to visualize microorganisms and specific microbial structures.
Applications may include research involving:
- Bacteria
- Fungi
- Microbial structures
- Microbial identification techniques
Cell Biology
Fluorescent labels can be used to study cellular structures and their distribution.
Researchers may investigate:
- Nuclei
- Cytoskeleton
- Organelles
- Membrane structures
- Cellular proteins
Immunofluorescence
Immunofluorescence uses antibodies associated with fluorescent labels to detect specific targets within cells or tissues.
The fluorescence signal helps researchers determine where a particular antigen or protein is located.
Molecular Biology
Fluorescent probes and markers can be used to investigate specific molecular components and biological processes.
Pathology Research
Fluorescence-based techniques can support research involving tissue sections, cellular markers, and disease-related biomarkers.
Biomedical Research
Fluorescence microscopy is extensively used for studying cellular processes, molecular interactions, biological structures, and disease mechanisms.
Educational Laboratories
Fluorescence microscopes can also be used in advanced teaching and demonstration laboratories to introduce students to fluorescence-based imaging techniques.
Advantages of Fluorescence Microscopy
Fluorescence microscopy offers several advantages when the application requires selective visualization.
High Contrast
Fluorescent structures can appear bright against a relatively dark background.
Specific Detection
Fluorescent labels can be designed to target specific molecules, structures, or cells.
Multiple Fluorescent Labels
Different fluorophores can sometimes be combined to visualize multiple targets within the same specimen.
Digital Imaging
Fluorescence microscopes can be integrated with cameras for image acquisition and documentation.
Molecular-Level Visualization
Fluorescent probes can help researchers visualize specific molecular components that may not be distinguishable using conventional microscopy.
Limitations of Fluorescence Microscopy
Fluorescence microscopy also has limitations that should be considered.
Photobleaching
Fluorescent molecules can lose their ability to fluoresce after prolonged exposure to excitation light. This process is known as photobleaching.
Phototoxicity
In live-cell experiments, intense illumination can affect or damage living cells.
Background Fluorescence
Unwanted fluorescence from the specimen or surrounding materials can reduce image quality.
Specialized Sample Preparation
Many applications require fluorescent stains, antibodies, probes, or other specialized sample preparation techniques.
Optical Alignment and Filter Selection
The microscope requires suitable optical filters and spectral matching between the illumination system, fluorophore, and detection system.
What Is Autofluorescence?
Some biological materials naturally emit fluorescence when exposed to certain wavelengths of light. This phenomenon is called autofluorescence.
Autofluorescence can be useful in some applications, but it can also become an unwanted background signal.
Examples of naturally fluorescent biological materials can include certain tissue components and cellular molecules.
Researchers may therefore need appropriate controls, filter selection, and sample preparation to distinguish the desired fluorescence signal from background autofluorescence.
What Is Photobleaching?
Photobleaching occurs when a fluorescent molecule loses its ability to fluoresce after repeated or prolonged exposure to excitation light.
In simple terms:
Excitation Light → Fluorescence → Repeated Exposure → Reduced Fluorescence
Photobleaching can affect long-duration imaging experiments and time-lapse fluorescence observations.
Researchers can reduce its impact by using suitable illumination intensity, exposure settings, filters, and sample preparation methods.
What Is Numerical Aperture and Why Is It Important?
Numerical aperture (NA) is an important property of a microscope objective that describes its ability to collect light and resolve fine details.
In fluorescence microscopy, a high-NA objective can be particularly valuable because the emitted fluorescence may be relatively weak.
Higher numerical aperture can contribute to:
- Better resolution
- Greater light collection
- Improved fluorescence signal
- More detailed imaging
However, objective selection should consider the specimen, imaging method, working distance, immersion medium, and overall microscope configuration.
How to Choose a Fluorescence Microscope?
The correct fluorescence microscope should be selected according to the intended application rather than magnification alone.
1. Identify the Fluorophore
First determine which fluorescent dyes, proteins, antibodies, or probes will be used.
The microscope’s excitation and emission filters must be compatible with these fluorophores.
2. Check the Filter Configuration
Confirm that the microscope supports the required:
- Excitation filter
- Dichroic mirror
- Emission filter
3. Consider the Objective
Check:
- Magnification
- Numerical aperture
- Working distance
- Dry or immersion design
- Fluorescence compatibility
4. Consider the Illumination Source
Choose an illumination system suitable for the required excitation wavelengths and expected operating conditions.
5. Check Camera Compatibility
For digital imaging, consider the camera’s:
- Sensor sensitivity
- Resolution
- Exposure control
- Dynamic range
- Fluorescence sensitivity
6. Consider Single- or Multi-Color Imaging
If multiple fluorescent labels will be used, the microscope should support the corresponding filter sets and optical configuration.
7. Consider the Sample
The microscope should be suitable for the specimen type, whether it involves fixed cells, tissue sections, microorganisms, fluorescent beads, or live-cell samples.
Fluorescence Microscope Maintenance
Proper maintenance helps preserve optical performance and image quality.
Important practices include:
- Keep optical surfaces clean.
- Avoid touching objective lenses with bare fingers.
- Clean objectives using appropriate optical cleaning procedures.
- Protect fluorescence filters from contamination.
- Follow the manufacturer’s recommended lamp or LED operating procedures.
- Keep the microscope covered when not in use.
- Use suitable immersion oil where required.
- Avoid unnecessary exposure of fluorescent specimens to intense illumination.
- Perform periodic inspection of the illumination and imaging system.
Frequently Asked Questions
What is a fluorescence microscope?
A fluorescence microscope is an optical microscope that uses excitation light and wavelength-selective optical filters to detect fluorescent light emitted by a specimen.
What is the main principle of fluorescence microscopy?
The basic principle is that a fluorophore absorbs excitation light and subsequently emits light at a longer wavelength. The microscope separates the excitation and emission wavelengths and uses the emitted fluorescence to form an image.
What are the main parts of a fluorescence microscope?
The major components include the illumination source, excitation filter, dichroic mirror, objective lens, specimen stage, emission filter, eyepiece or camera, and fluorescence filter set.
What is a dichroic mirror?
A dichroic mirror is a wavelength-selective optical component that typically reflects excitation light toward the specimen while transmitting emitted fluorescence toward the detection system.
Why are filters required in a fluorescence microscope?
Filters separate the excitation light from the fluorescence emitted by the specimen. This allows the microscope to detect the desired fluorescence signal while reducing unwanted illumination.
What is a fluorophore?
A fluorophore is a fluorescent molecule or molecular group that absorbs light at one wavelength and emits light at another, generally longer, wavelength.
What is photobleaching?
Photobleaching is the loss of fluorescence caused by prolonged or repeated exposure of fluorescent molecules to excitation light.
Can a fluorescence microscope use a camera?
Yes. A fluorescence microscope can be equipped with a suitable scientific camera to capture, document, and analyze fluorescence images.
What is the difference between fluorescence and ordinary microscopy?
Ordinary microscopy generally forms an image using transmitted or reflected illumination, whereas fluorescence microscopy detects light emitted by fluorescent molecules after excitation.
What is epi-fluorescence microscopy?
Epi-fluorescence microscopy is a configuration in which excitation light is directed through the objective onto the specimen, while the same objective collects the emitted fluorescence.
Fluorescence Microscope: Complete Optical Path at a Glance
The entire process can be simplified into the following sequence:
1. Light Source
Produces excitation illumination.
↓
2. Excitation Filter
Selects the required excitation wavelength.
↓
3. Dichroic Mirror
Reflects excitation light toward the specimen.
↓
4. Objective Lens
Focuses excitation light onto the specimen.
↓
5. Fluorescent Sample
Fluorophores absorb excitation light and emit longer-wavelength fluorescence.
↓
6. Objective Lens
Collects the emitted fluorescence.
↓
7. Dichroic Mirror
Transmits the emitted fluorescence toward the detection path.
↓
8. Emission Filter
Blocks unwanted excitation light and passes the desired fluorescence.
↓
9. Eyepiece / Camera
Displays or records the final fluorescent image.
In One Line
Light Source → Excitation Filter → Dichroic Mirror → Objective → Sample → Objective → Dichroic Mirror → Emission Filter → Eyepiece/Camera
Wrapping Notes
A fluorescence microscope is designed to detect and visualize fluorescent signals from biological and other specialized specimens. Its operation depends on the coordinated performance of the illumination source, excitation filter, dichroic mirror, objective lens, fluorescent sample, emission filter, and observation or imaging system.
The most important concept is the separation of excitation light from emitted fluorescence. The excitation light provides energy to the fluorophore, while the resulting longer-wavelength fluorescence becomes the signal used to form the image.
Because fluorescence microscopy can selectively highlight particular structures or molecules, it has become an important imaging technique in microbiology, cell biology, immunofluorescence, molecular biology, pathology research, and biomedical science.
