Description
Technical Specifications
| Specification | Details |
|---|---|

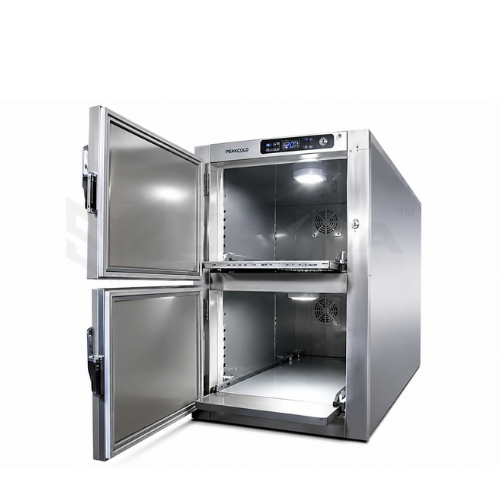

| Product Name | Mortuary Freezer |
| Internal Model No. | OPX-237 |
| Product Type | Body Preservation Cabinet |
| Temperature Range | 2°C to 8°C |
| Temperature Accuracy | ±0.5°C |
| Controller | Digital PID Temperature Controller |
| Chamber Construction | Double Wall |
| Inner Chamber | SS304 Stainless Steel |
| Outer Chamber | SS304 Stainless Steel |
| Insulation | High Density Glass-Filled PUF |
| Refrigeration System | CFC-Free High-Efficiency Compressor |
| Body Tray | Stainless Steel Run-on Roller Trolley |
| Alarm System | Audio & Visual Alarm |
| Mobility | Heavy-Duty Castor Wheels |
| Power Supply | 230V ±10%, 50Hz |
| Application | Human Body Preservation |
Features
- Double-wall insulated construction
- SS304 stainless steel inner and outer chambers
- High-density PUF insulation
- Digital PID temperature controller
- Temperature range 2°C to 8°C
- Temperature accuracy ±0.5°C
- CFC-free refrigeration system
- Stainless-steel roller trolley
- Audio and visual alarm system
- Heavy-duty castor wheels for mobility
Benefits
- Maintains hygienic body preservation conditions
- Stable and accurate temperature control
- Energy-efficient refrigeration system
- Durable stainless-steel construction
- Easy loading and unloading of body trays
- Reliable continuous operation
- Suitable for hospitals and forensic facilities
Available Variants
| Model | Capacity | Recommended Voltage Stabilizer |
|---|---|---|
| OPX-237A | Single Body | 3.0 kVA |
| OPX-237B | Two Bodies | 4.0 kVA |
| OPX-237C | Three Bodies | 5.0 kVA |
| OPX-237D | Four Bodies | 8.0 kVA |
| OPX-237E | Six Bodies | 8.0 kVA |
Optional Configurations
- Chart Recorder with Printer
- Automatic Voltage Stabilizer
- Digital Data Logger
- GSM Alarm System
- USB Data Export
- Independent Chamber Temperature Control
- SS316 Construction
- Custom Body Capacity
Applications
- Hospitals
- Medical Colleges
- Mortuaries
- Morgues
- Forensic Laboratories
- Pathology Departments
- Funeral Homes
- Anatomy Departments
- Disaster Management Centers
- Government Healthcare Facilities
Why Choose Our Products
- Medical-grade SS304 stainless steel construction
- Accurate Digital PID temperature control
- Reliable CFC-free refrigeration technology
- Multiple body storage configurations
- Low maintenance and energy-efficient operation
- Custom-built solutions available
- Designed for continuous professional use
Frequently Asked Questions
What is a Mortuary Freezer used for?
A Mortuary Freezer is used for the hygienic preservation of deceased individuals under controlled refrigerated conditions before identification, autopsy, burial, or cremation.
What temperature range does the freezer maintain?
The standard operating temperature range is 2°C to 8°C, with a temperature accuracy of approximately ±0.5°C.
What material is used for the chamber?
Both the inner and outer chambers are manufactured from high-grade SS304 stainless steel for hygiene, durability, and corrosion resistance.
What body capacities are available?
The Mortuary Freezer is available in single-body, two-body, three-body, four-body, and six-body configurations.
Does the unit include alarms?
Yes. It includes audio and visual alarms for continuous temperature monitoring and operational safety.
Can additional accessories be supplied?
Yes. Optional accessories include a chart recorder with printer, automatic voltage stabilizer, data logger, and customized configurations.
Is it suitable for continuous operation?
Yes. The freezer is designed for 24/7 operation in hospitals, forensic laboratories, and mortuary facilities.
Do you supply bulk and customized models?
Yes. Opxica manufactures standard and customized mortuary freezers for hospitals, medical colleges, government institutions, OEMs, and distributors.
Call to Action
Looking for a reliable Mortuary Freezer for hospitals, forensic laboratories, or medical institutions? Opxica manufactures high-quality body preservation cabinets with precise temperature control, durable SS304 construction, and multiple storage capacities. Contact us today for pricing, customization options, or bulk procurement assistance.
