Description
Technical Specifications
| Parameter | Specification |
|---|---|

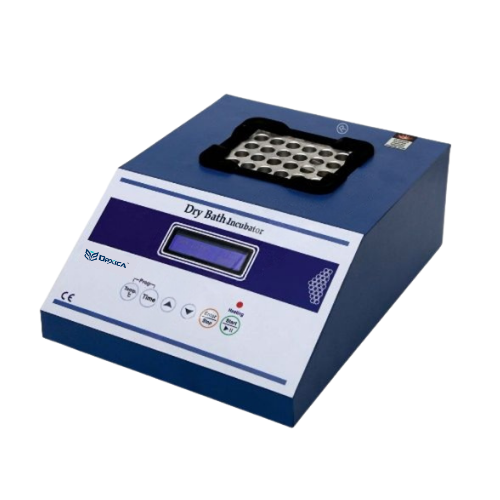

| Product Name | Digital Dry Bath Incubator |
| Model | OPX-543 |
| Display | 16 × 2 Line Alphanumeric LCD |
| Operation | Menu Driven |
| Controls | Soft-Touch Keys |
| Heating Type | Test Tube Dry Bath Heating |
| Temperature Sensor | RTD / PT100 / Digital Semiconductor |
| Temperature Range | 5°C Above Ambient to 150°C |
| Resolution | 1°C |
| Accuracy | ±1°C |
| Calibration | Manual Calibration, if required |
| Tube Holder Block Size | 24 × 12 mm |
| Block Material | Aluminium |
| Power Supply | 230 ± 10V / 50Hz |
| Brand | OPXICA |
Key Features
- 16 × 2 Line Alphanumeric LCD Display for clear parameter viewing
- Menu-Driven Display Format for simple and convenient operation
- Soft-Touch Keys for easy setting and control
- Designed for Test Tube Dry Bath Heating
- Temperature Sensing Options: RTD / PT100 / Digital Semiconductor
- Temperature Range: 5°C above ambient to 150°C
- Temperature Resolution: 1°C
- Temperature Accuracy: ±1°C
- Manual Calibration facility, if required
- 24 × 12 mm Tube Holder Block Size
- Rock-Solid Aluminium Block for efficient and uniform heat transfer
- Compact benchtop design for laboratory use
- Designed for reliable continuous laboratory operation
Temperature Control System
The OPX-543 provides controlled heating from 5°C above ambient temperature up to 150°C. The temperature sensing system can be configured using RTD, PT100, or digital semiconductor sensing technology, depending on the required configuration.
The instrument offers 1°C resolution with an accuracy of ±1°C, while manual calibration can be performed when required to maintain reliable temperature measurement.
Heating Block
The unit incorporates a durable aluminium heating block designed for stable heat transfer to the test tubes. The specified 24 × 12 mm tube-holder block provides a dedicated arrangement for laboratory test tubes and sample heating.
The dry-block design eliminates the need for a water bath, making routine sample heating cleaner and more convenient.
Display & Operation
The 16 × 2-line alphanumeric LCD display provides a straightforward interface for viewing operating parameters. Its menu-driven display format allows users to navigate settings easily, while soft-touch keys provide convenient control of the instrument.
Applications
The Digital Dry Bath Incubator OPX-543 can be used for:
- Laboratory sample incubation
- Test tube heating
- Sample preparation
- Biochemistry laboratories
- Molecular biology laboratories
- Microbiology laboratories
- Pharmaceutical laboratories
- Biotechnology laboratories
- Clinical and diagnostic laboratories
- Research laboratories
- Educational laboratories
- Routine laboratory testing
- Controlled-temperature sample processing
Why Choose OPX-543?
The OPX-543 Digital Dry Bath Incubator provides a practical solution for laboratories that require controlled and repeatable sample heating. Its aluminium heating block, digital temperature control, LCD interface, soft-touch operation, and compact design make it suitable for routine laboratory applications where precise dry heating is required.
