Description

Technical Specifications

Specification note: Exact values for vacuum level, pumping speed/flow rate, motor power, inlet size, dimensions, weight, noise level and diaphragm dimensions were not provided. These should be added from the manufacturer’s actual datasheet rather than estimated.

Key Features

1. Teflon Diaphragm Vacuum Mechanism

The OPX-212 generates vacuum using a Teflon diaphragm mechanism. The diaphragm creates the required pressure differential without requiring oil lubrication.

This makes the pump particularly suitable for applications where a clean vacuum environment is important.

2. Completely Oil-Free Operation

The pump operates without vacuum pump oil, providing a clean pumping process and eliminating the possibility of oil vapors entering the vacuum system.

3. Contamination-Free Vacuum

The oil-free construction helps prevent contamination caused by oil vapors, making the OPX-212 suitable for sensitive laboratory and process applications.

4. Beltless Design

The pump uses a beltless drive configuration, eliminating belt maintenance and reducing the number of external moving drive components.

5. Continuous Operation

The OPX-212 is designed for continuous operation, making it suitable for applications where vacuum needs to be maintained for extended periods.

6. Low-Maintenance Operation

Because there is no vacuum oil or belt drive to maintain, routine maintenance requirements can be reduced compared with conventional oil-sealed belt-driven vacuum pumps.

7. Compact Construction

The compact pump design allows convenient installation in laboratory workstations, vacuum systems, filtration setups, and other equipment.

8. Reliable Electrical Operation

The pump is designed for operation on a 220/230 V AC power supply, making it suitable for standard laboratory and industrial electrical systems.

Working Principle

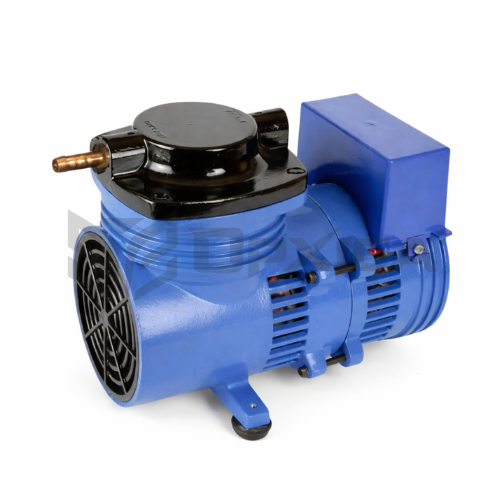

The Vacuum Pump Oil Free OPX-212 operates using a flexible Teflon diaphragm.

During operation, the diaphragm moves back and forth inside the pump chamber. This movement changes the chamber volume and creates alternating suction and compression cycles. Air and gases are drawn into the vacuum system and discharged through the pump outlet.

Because the pumping mechanism does not require oil lubrication, the resulting vacuum system remains free from oil vapors generated by conventional oil-sealed vacuum pumps.

Advantages of Oil-Free Diaphragm Technology

Clean Vacuum

No vacuum oil is used, making the pump suitable for applications where oil contamination must be avoided.

Reduced Maintenance

The absence of oil eliminates routine oil changes and oil-level monitoring.

Continuous Operation

The pump is designed for applications requiring extended or continuous vacuum operation.

Environmentally Cleaner Operation

The oil-free pumping mechanism avoids the handling and disposal of vacuum pump oil.

Suitable for Sensitive Applications

The clean pumping principle is useful for laboratory processes involving samples or materials that may be affected by oil contamination.

Applications

The Vacuum Pump Oil Free OPX-212 is suitable for:

• Laboratory vacuum systems
• Vacuum filtration
• Vacuum drying
• Pharmaceutical laboratories
• Chemical laboratories
• Biotechnology laboratories
• Research laboratories
• Industrial vacuum systems
• Sample preparation
• Vacuum concentration
• Degassing applications
• Vacuum evaporation
• Filtration systems
• Sensitive laboratory processes
• General-purpose clean vacuum applications

Why Choose OPX-212?

• Completely oil-free operation
• Teflon diaphragm vacuum mechanism
• Beltless construction
• Suitable for continuous operation
• Helps prevent oil-vapor contamination
• Low-maintenance design
• Compact laboratory-friendly construction
• Suitable for sensitive samples and processes
• 220/230 V AC operation
• Suitable for laboratory and industrial applications

Oil-Free vs Oil-Sealed Vacuum Pump
