Description
Specifications
| Category | Specification |
|---|---|

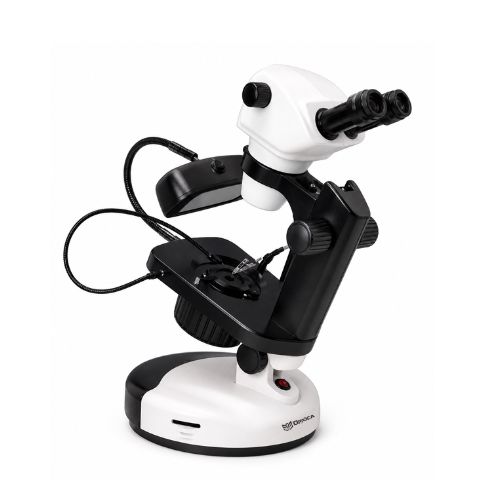

| Product Name | Opxica Gemological Microscope |
| Model | OPX-169 |
| Microscope Type | Binocular Stereo Microscope |
| Application | Gemological, Jewellery & Laboratory Inspection |
| Magnification | 7X–45X Zoom |
| Head Type | Binocular |
| Viewing Field | Bright & Dark Field |
| Illumination | Bright & Dark Field Illumination |
| Iris Diaphragm | Adjustable, approximately 2mm–41mm viewing field |
| Stand Type | Flexible Arm |
| Working Distance | 115mm |
| Eyepieces | 10X, 20mm |
| Zoom System | Stereo Zoom |
| Darkfield | Darkfield Attachment Included |
| Diamond Holder | Vacuum-Based Holding System |
| Base | Rotatable Base |
| Focus | Focusing Knobs on Stand |
| Illumination Source | Halogen Lamp with Reflector / LED Illumination System |
| Electrical | Universal Power Supply, 110V–240V |
| Warranty | 1 Year |
| Country of Origin | Made in India |
Key Features
- Binocular Stereo Microscope for comfortable stereoscopic observation
- 7X–45X Zoom Range for variable magnification
- Bright & Dark Field Viewing for versatile specimen examination
- Flexible Arm Stand for convenient positioning
- 115mm Working Distance for practical specimen handling
- Darkfield Attachment Included
- Adjustable Iris Diaphragm for bright and dark field illumination
- Vacuum-Based Diamond Holding System
- 360° Specimen Manipulation for flexible diamond observation
- Suitable for examining Cut, Colour & Inclusions
- Universal 110V–240V Power Supply
- 1-Year Warranty
- Made in India
Bright & Dark Field Illumination
The OPX-169 Gemological Microscope provides both bright field and dark field viewing, giving users flexibility when examining different types of specimens. The adjustable iris diaphragm helps control the viewing field and illumination according to the inspection requirement.
The darkfield configuration is particularly useful for observing details that may require enhanced contrast against the surrounding field.
Gemstone & Diamond Examination
The Opxica OPX-169 is designed to support detailed inspection of gemstones and diamonds. Its specimen holding arrangement allows the diamond to be positioned and rotated during observation, helping users examine different surfaces and viewing angles.
It can be used for visual examination of:
- Diamond cut
- Colour characteristics
- Inclusions
- Surface details
- Gemstone features
- Jewellery components
Laboratory Applications
Beyond jewellery and gemological inspection, the Opxica OPX-169 Gemological Microscope can also be used for general laboratory observation where stereo magnification and flexible specimen positioning are required.
Its binocular viewing system, adjustable magnification and flexible-arm configuration make it suitable for professional inspection environments.
Why Choose Opxica OPX-169?
The Opxica OPX-169 Gemological Microscope brings together binocular stereo viewing, variable zoom magnification, bright and dark field illumination, a flexible-arm stand and a 115mm working distance in one professional microscope. Its universal power supply and Made in India configuration support practical use in jewellery, gemological and laboratory environments.
