Description
Technical Specifications
| Parameter | Specification |
|---|---|

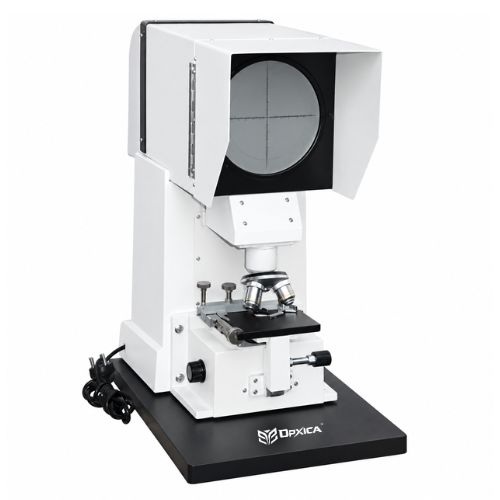

| Product Name | Projection Microscope OPX-179 |
| Brand | OPXICA |
| Microscope Type | Projection Microscope |
| Projection Screen | 160 mm Diameter Screen |
| Screen Attachment | Wall Screen Attachment |
| Nosepiece | Triple Revolving Nosepiece |
| Stage | 110 × 110 mm Detachable Stage |
| Stage Features | Slide Clips for Holding Slides |
| Focusing System | Coarse Focusing with Diagonally Cut Rack & Pinion Arrangement |
| Illumination | 12V / 100W Halogen Projection Bulb |
| Power Supply | 220V AC Mains |
| Eyepiece | Built-in Huygenian 10X Eyepiece |
| Objectives | 5X, 10X and 40X SL |
| Maximum Optical Magnification | Up to 400X with 10X Eyepiece and 40X Objective |
| Packing | Cardboard Packing |
Key Features
- Large 160 mm diameter projection screen for group viewing.
- Wall screen attachment for convenient classroom and demonstration use.
- Triple revolving nosepiece for objective selection.
- Built-in Huygenian 10X eyepiece.
- 5X, 10X and 40X SL objectives for different observation requirements.
- Detachable 110 × 110 mm stage.
- Slide clips for secure specimen positioning.
- Rack-and-pinion coarse focusing mechanism.
- Diagonally cut rack arrangement for smooth focusing operation.
- Powerful 12V/100W halogen projection illumination.
- Designed to operate on 220V AC mains.
- Suitable for laboratory teaching and educational demonstrations.
- Robust and straightforward design for routine use.
Working Purpose
The OPXICA Projection Microscope OPX-179 is developed primarily for microscope projection, classroom demonstration and laboratory teaching.
The projection system enlarges the microscopic image onto the built-in screen, allowing multiple students or observers to view the specimen simultaneously. This makes the microscope useful where direct individual viewing through an eyepiece would be inconvenient for a large group.
The detachable mechanical stage with slide clips helps position microscope slides securely, while the triple revolving nosepiece allows users to select between different objective magnifications.
The 12V/100W halogen illumination system provides the light required for projection and microscopic observation.
Applications
The Projection Microscope OPX-179 is suitable for:
- School Laboratories
- College Laboratories
- University Laboratories
- Biology Teaching
- Classroom Demonstrations
- Science Education
- Laboratory Training
- Biology Practical Classes
- Microbiology Teaching
- Botany Laboratories
- Zoology Laboratories
- Medical Education
- Specimen Demonstration
- Laboratory Instruction
- Educational Institutions
- Training Centres
- Routine Microscopic Observation
Typical Uses
The OPX-179 can be used for:
- Classroom specimen demonstrations
- Biological slide observation
- Group microscope demonstrations
- Comparison of prepared slides
- Teaching basic microscopy
- Demonstration of microscopic structures
- Biology practical sessions
- Laboratory training
- Educational specimen observation
Wrapping Notes
The OPXICA Projection Microscope OPX-179 provides a practical solution for educational institutions and laboratories requiring enlarged microscope images for group observation. Its 160 mm projection screen, triple revolving nosepiece, detachable 110 × 110 mm stage, built-in 10X Huygenian eyepiece and 12V/100W halogen illumination make it suitable for classroom demonstrations and routine laboratory teaching.
Its simple focusing mechanism and slide-holding stage allow straightforward operation, while the projection screen enables students and instructors to observe the same microscopic image simultaneously.
Frequently Asked Questions (FAQs)
1. What is the Projection Microscope OPX-179 used for?
It is primarily used for classroom demonstrations, laboratory teaching, specimen observation and group viewing of microscopic images.
2. What size is the projection screen?
The OPX-179 is specified with a 160 mm diameter projection screen.
3. What objectives are supplied?
The specified objective configuration includes 5X, 10X and 40X SL objectives.
4. What is the maximum magnification?
With the specified 10X eyepiece and 40X objective, the optical magnification is 400X.
5. Does it have a revolving nosepiece?
Yes. It features a triple revolving nosepiece.
6. What type of eyepiece does it use?
The microscope has a built-in Huygenian 10X eyepiece.
7. What is the stage size?
The detachable stage measures 110 × 110 mm and includes slide clips for holding microscope slides.
8. What type of focusing mechanism is provided?
It uses coarse focusing through a diagonally cut rack-and-pinion mechanism.
9. What illumination does the microscope use?
It uses a 12V/100W halogen projection bulb.
10. What power supply is required?
The supplied specification states operation on 220V AC mains.
11. Can several students observe the specimen?
Yes. The projection screen is designed to display an enlarged microscopic image, making it suitable for group classroom demonstrations.
12. Is the microscope suitable for schools and colleges?
Yes. Its projection-based design is particularly suitable for schools, colleges, universities and other educational laboratories.
