Description
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | AIMM-139 |

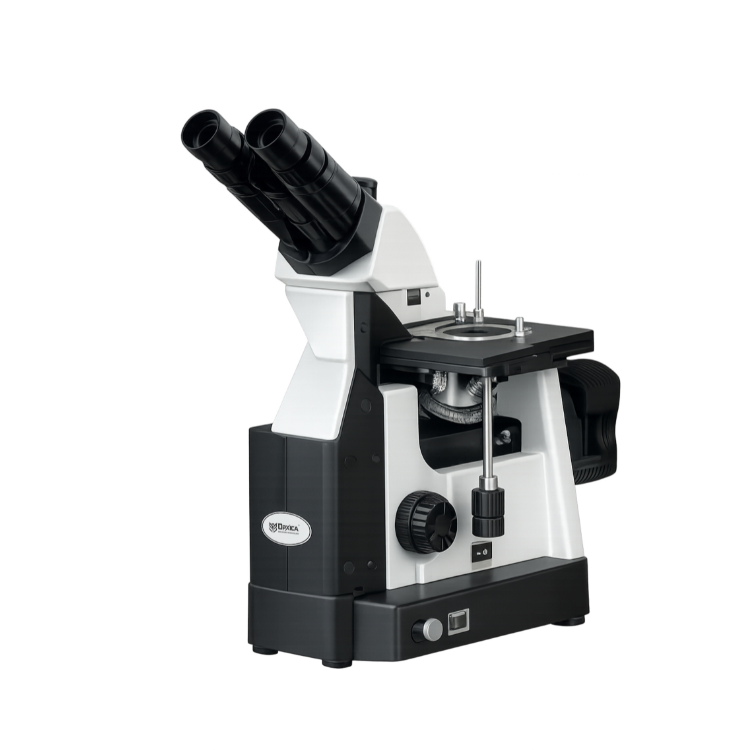

| Product Name | Advanced Inverted Metallurgical Microscope AIMM-139 |
| Observation Head | Compensation-Free Trinocular Head |
| Head Inclination | 45° Inclined |
| Rotation | 360° Rotatable |
| Interpupillary Distance | 54–75 mm Adjustable |
| Eyepiece | Wide Field Eyepiece |
| Objective Set | Plan Metallurgical Achromatic Objectives 5X, 10X, 20X |
| Magnification Range | 50X – 200X |
| Stage Type | Triple Layer Mechanical Stage |
| Stage Size | 180 × 155 mm |
| Stage Travel Range | 75 × 40 mm |
| Focusing System | Coaxial Coarse & Fine Focus |
| Fine Focus Precision | 0.002 mm |
| Condenser | Swing-Out Condenser N.A. 0.7 |
| Illumination | 5W LED Köhler Illumination |
| Light Control | Adjustable Brightness Control |
| Application | Metallurgical Analysis & Material Testing |
| Brand | OPXICA |
Key Features
1. Advanced Inverted Design
The inverted optical structure allows convenient examination of large, heavy, and irregular industrial samples without extensive preparation.
2. High-Quality Optical Performance
The Advanced Inverted Metallurgical Microscope features premium metallurgical achromatic objectives that provide sharp, high-contrast images for accurate material analysis.
3. Trinocular Viewing Head
Equipped with a compensation-free trinocular head for comfortable viewing and digital imaging integration.
4. Precision Focusing Mechanism
The coaxial coarse and fine focusing system ensures smooth operation with exceptional focusing accuracy of 0.002 mm.
5. Triple Layer Mechanical Stage
Provides precise specimen positioning and smooth movement for detailed observation and analysis.
6. Köhler Illumination System
Advanced 5W LED Köhler illumination ensures uniform lighting and improved image quality across the field of view.
7. Long Working Distance Objectives
Specialized metallurgical objectives allow observation of thick and polished specimens while maintaining image clarity.
8. Industrial-Grade Construction
Built with a robust frame for continuous operation in laboratories, research centers, and manufacturing facilities.
Working Purpose
The Advanced Inverted Metallurgical Microscope is specifically developed for examining the microstructure and surface characteristics of metallic and industrial materials. It is widely used to:
- Analyze grain structures in metals and alloys.
- Inspect weld quality and heat-affected zones.
- Detect cracks, inclusions, and surface defects.
- Examine coatings and plated surfaces.
- Conduct metallurgical research and material development.
- Perform industrial quality control inspections.
- Evaluate castings, forgings, and machined components.
- Support educational and research laboratory applications.
Applications
- Metallurgical Laboratories
- Material Testing Laboratories
- Industrial Quality Control Departments
- Engineering Colleges & Universities
- Manufacturing Industries
- Automotive Component Testing
- Aerospace Material Inspection
- Research & Development Centers
- Steel and Foundry Industries
Conclusion
The Advanced Inverted Metallurgical Microscope AIMM-139 combines superior optical performance, precision mechanics, and advanced illumination technology to deliver reliable metallurgical analysis. Designed for professional laboratories and industrial environments, it enables accurate observation of metal structures, coatings, and material defects. With its ergonomic design, high-quality optics, and durable construction, the Advanced Inverted Metallurgical Microscope is an excellent choice for researchers, quality control professionals, and material scientists seeking dependable and precise inspection results.
