Description
Technical Specifications
| Parameter | Specification |
|---|---|

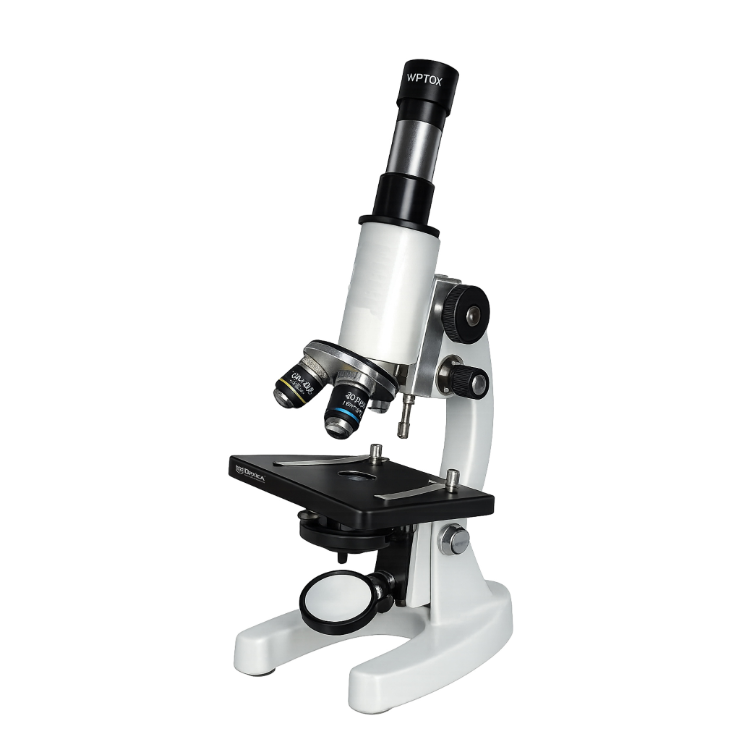

| Product Name | Advance Student Microscope ASM-114 |
| Microscope Type | Monocular Compound Microscope |
| Viewing Head | Monocular, Inclined at 90° |
| Eyepiece | Wide Field 10X |
| Objective Lenses | Achromatic 10X and 40X |
| Magnification Range | 40X – 400X |
| Nosepiece | Triple Revolving Nosepiece |
| Stage | Stainless Steel Stage with Clips |
| Focusing System | Rack & Pinion Coarse Focus |
| Condenser | Abbe Condenser with Iris Diaphragm |
| Illumination | Mirror-Based Natural Light |
| Body Material | Heavy-Duty Metal Construction |
| Application | Educational, Laboratory & Biological Studies |
Key Features
- High-quality achromatic optical system for sharp image clarity.
- Durable metal body construction for long-lasting performance.
- Monocular viewing head with comfortable 90° inclination.
- Magnification range from 40X to 400X.
- Triple revolving nosepiece for quick objective selection.
- Stainless steel stage with specimen holding clips.
- Smooth rack and pinion focusing mechanism.
- Efficient mirror-based illumination system.
- User-friendly operation suitable for students and beginners.
- Compact, lightweight, and easy-to-maintain design.
Working Purpose
The Advance Student Microscope is designed to help students and laboratory users observe microscopic specimens that are invisible to the naked eye. It magnifies biological samples, plant tissues, microorganisms, and prepared slides using a combination of objective and eyepiece lenses. The mirror illumination system directs light through the specimen, enabling detailed observation and improving understanding of biological structures during practical experiments and scientific studies.
Conclusion
The Advance Student Microscope ASM-114 is a reliable and cost-effective solution for educational and laboratory applications. Combining quality optics, sturdy construction, and user-friendly operation, it supports accurate specimen examination and practical learning. Whether used in schools, colleges, science laboratories, or training institutes, the OPXICA Advance Student Microscope provides excellent performance, durability, and optical precision, making it an ideal choice for scientific education and routine laboratory observations.
