Description
| Parameter | Specification |
|---|---|
| Model Number | ABRM-108 |

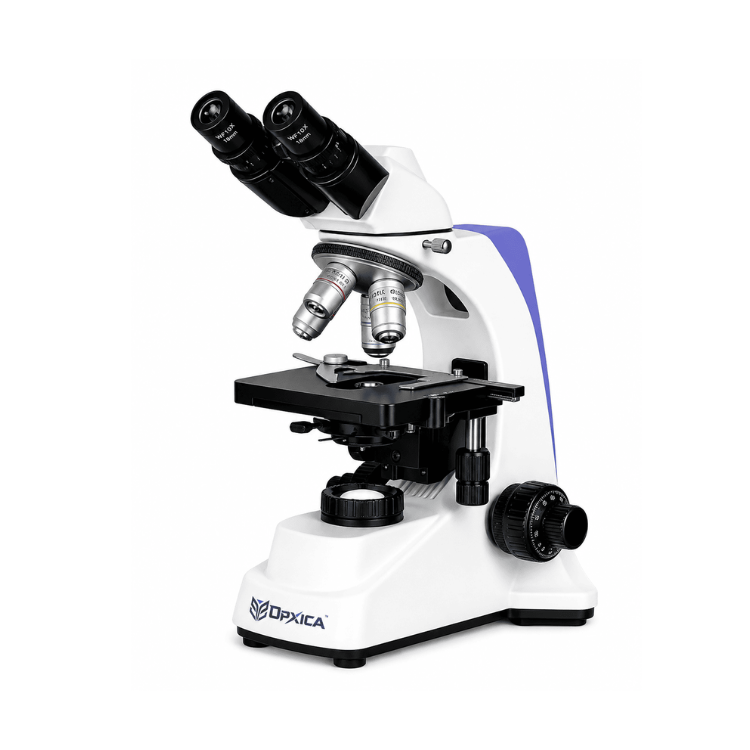

| Product Name | Advanced Binocular Research Microscope |
| Brand Name | OPXICA |
| Observation Head | Binocular Head Inclined 30° |
| Head Rotation | 360° Rotatable |
| Eyepiece | WF10X Wide Field |
| Objectives | 4X, 10X, 40X, 100X Oil |
| Objective Type | Semi Plan Achromatic |
| Magnification Range | 40X – 1000X |
| Nosepiece | Reverse Quadruple Nosepiece |
| Stage Type | Double Layer Mechanical Stage |
| Stage Size | 140 x 140 mm |
| Focusing System | Co-Axial Coarse & Fine Focusing |
| Fine Division | 0.002 mm |
| Condenser | Abbe Condenser |
| Illumination | 3W LED Illumination |
| Brightness Control | Adjustable Intensity Control |
| Application | Research, Clinical & Laboratory Use |
Technical Specifications
Key Features
- Advanced optical system for sharp and detailed imaging
- Semi plan achromatic objectives for enhanced clarity
- Bright LED illumination with adjustable brightness control
- Smooth double-layer mechanical stage movement
- Ergonomic binocular viewing for comfortable operation
- Reverse quadruple nosepiece for easy objective switching
- Precision coarse and fine focusing adjustment
- Heavy-duty laboratory-grade construction
- Suitable for long laboratory and research sessions
- Ideal for microbiology, pathology, and educational applications
Working Purpose
The Advanced Binocular Research Microscope is designed for detailed examination of microorganisms, biological specimens, tissues, blood samples, bacteria, and laboratory slides. It is widely used in hospitals, pathology laboratories, microbiology research centers, pharmaceutical industries, colleges, and scientific institutions. This microscope supports accurate laboratory diagnostics, advanced biological studies, clinical testing, and educational demonstrations with superior optical clarity and stable illumination performance.
Wrapping Notes
The OPXICA Advanced Binocular Research Microscope ABRM-108 combines precision engineering, advanced optical technology, and durable laboratory construction to deliver dependable scientific observation and research performance. Its superior imaging quality, ergonomic design, and reliable functionality make it an excellent choice for modern laboratories, educational institutions, and research facilities. OPXICA continues to provide trusted microscopy solutions designed for professional laboratory and scientific applications.
