Compound Microscope: Diagram, Parts and Working Principle

Introduction

The compound microscope is one of the most important scientific instruments used in biology, medicine, microbiology, pathology, research, and education. It enables users to observe microscopic structures such as cells, bacteria, tissues, and microorganisms that are invisible to the naked eye. Using an objective lens and an eyepiece, a compound microscope provides magnification from 40× to 1000×, delivering clear and detailed images for accurate observation.

Understanding the compound microscope diagram, parts of the compound microscope, and compound microscope working principles is essential for students, teachers, laboratory technicians, researchers, and healthcare professionals. These concepts help users operate the microscope correctly and obtain reliable results.

As a trusted compound microscope manufacturer in India, Opxica offers high-quality laboratory, educational, and research microscopes designed for precision, durability, and superior optical performance, making them ideal for schools, colleges, hospitals, and research laboratories.

Understanding the working mechanism of a compound microscope is the first step toward accurate scientific observation.

---

Table of Contents

1. What is a Compound Microscope?
2. Compound Microscope Diagram
3. Parts of Compound Microscope
4. Functions of Each Part of a Compound Microscope

---

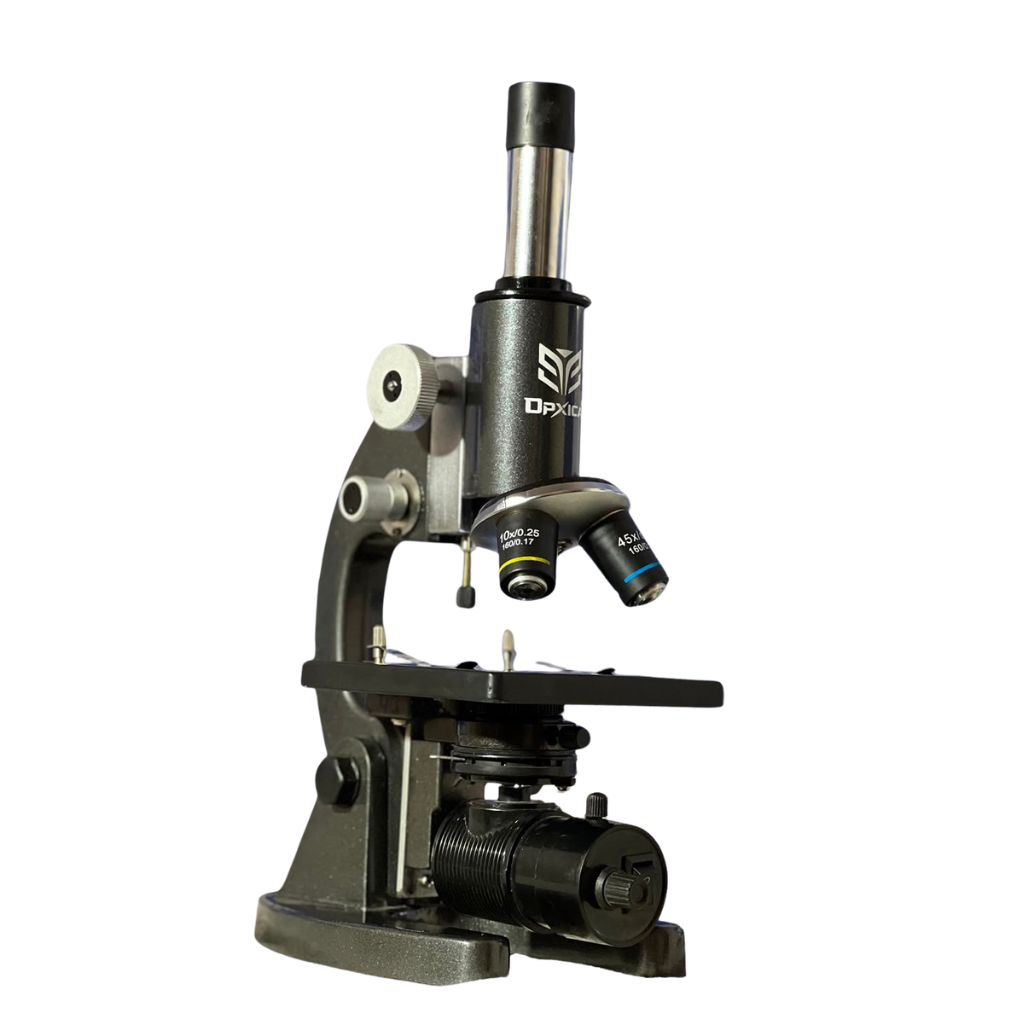

What is a Compound Microscope?

A Compound Microscope is an optical instrument designed to magnify tiny objects by using multiple lenses. It combines an objective lens located near the specimen and an eyepiece (ocular lens) through which the observer views the magnified image. Together, these lenses provide significantly higher magnification and better image resolution than a simple microscope.

Because it uses more than one lens system, it is called a compound microscope. This design allows users to observe microscopic organisms, tissues, cells, bacteria, fungi, parasites, and other specimens that are invisible to the naked eye.

Today, the compound microscope is the standard microscope found in educational institutions, hospitals, research laboratories, biotechnology companies, pharmaceutical manufacturing facilities, food testing laboratories, veterinary laboratories, and industrial quality control departments.

Brief History

The invention of the compound microscope dates back to the late 16th century. Dutch spectacle makers are credited with developing the first compound microscope, while scientists such as Galileo Galilei, Robert Hooke, and Antonie van Leeuwenhoek significantly improved microscope technology and advanced microscopic science.

Robert Hooke’s famous observations of cork cells introduced the term “cell,” while Antonie van Leeuwenhoek became known as the “Father of Microbiology” after observing bacteria and other microorganisms.

Modern compound microscopes now incorporate high-quality optics, LED illumination, precision focusing systems, and ergonomic designs that provide exceptional clarity for laboratory applications.

Purpose of a Compound Microscope

The primary purpose of a Compound Microscope is to enlarge very small specimens while maintaining image detail and resolution. It enables scientists and students to study the internal structures of living organisms, biological tissues, microorganisms, crystals, and other microscopic materials.

Its main objectives include:

• Examining biological specimens
• Studying microorganisms
• Observing cell structures
• Conducting laboratory experiments
• Supporting medical diagnosis
• Performing scientific research
• Quality inspection in industries

Optical System of a Compound Microscope

The optical system consists of carefully designed lenses that work together to produce a highly magnified image.

The major optical components include:

• Eyepiece (Ocular Lens)
• Objective Lenses
• Condenser
• Iris Diaphragm
• Illuminator (Light Source)

The objective lens creates the first enlarged image of the specimen. This intermediate image is then magnified further by the eyepiece, allowing the observer to see fine structural details with excellent clarity.

---

Difference Between a Simple Microscope and a Compound Microscope

Because of its superior magnification and optical performance, the compound microscope is preferred in scientific laboratories and educational institutions.

---

Compound Microscope Diagram

A Compound Microscope Diagram provides a visual representation of every major component and illustrates how light travels through the microscope to create a magnified image. Learning the diagram helps students understand the instrument’s structure, optical system, and working mechanism more effectively.

The optical path begins with the light source, which illuminates the specimen from below. The light then passes through the condenser, where it is concentrated into a focused beam. The iris diaphragm regulates the amount of light entering the specimen, allowing users to improve image contrast.

After passing through the specimen, the light enters the selected objective lens, which produces the first magnified image. This image travels through the body tube to the eyepiece (ocular lens), where it undergoes additional magnification before reaching the observer’s eye.

Mechanical components such as the stage, coarse adjustment knob, fine adjustment knob, arm, and base support accurate focusing and stable operation. Together, these components ensure precise observation of microscopic specimens.

Main Components Visible in a Compound Microscope Diagram

• Eyepiece (Ocular Lens)
• Body Tube
• Revolving Nosepiece
• Objective Lenses
• Stage
• Mechanical Stage
• Stage Clips
• Condenser
• Iris Diaphragm
• Illuminator
• Coarse Adjustment Knob
• Fine Adjustment Knob
• Arm
• Base
• Rack Stop
• Filter Holder

---

Parts of Compound Microscope

Understanding the Parts of Compound Microscope is essential for proper operation, maintenance, and obtaining accurate observations.

---

Functions of Each Part of a Compound Microscope

Eyepiece (Ocular Lens)

The eyepiece is the lens through which the user observes the specimen. It commonly provides 10× magnification, although 15× and 20× eyepieces are also available for specialized applications.

Objective Lens

Objective lenses perform the primary magnification of the specimen. Different objectives, such as 4×, 10×, 40×, and 100×, allow users to observe specimens at varying levels of detail.

Revolving Nosepiece

The revolving nosepiece securely holds multiple objective lenses and rotates smoothly to change magnification without disturbing specimen alignment.

Body Tube

The body tube maintains the correct distance between the eyepiece and objective lenses. Proper alignment ensures maximum image quality and optical performance.

Arm

The arm connects the microscope head to the base and provides structural support. It also serves as the correct grip when carrying the microscope safely.

Stage

The stage is a flat platform where microscope slides are placed. It includes an opening that allows light to pass upward through the specimen.

Mechanical Stage

A mechanical stage enables precise horizontal and vertical movement of the specimen slide using control knobs. This feature is especially valuable when examining detailed tissue sections.

Stage Clips

Stage clips securely hold the microscope slide in position, preventing unwanted movement during observation.

Condenser

The condenser gathers and focuses light onto the specimen. Proper condenser adjustment greatly improves image brightness, resolution, and contrast.

Iris Diaphragm

The iris diaphragm controls the amount of light reaching the specimen. Adjusting it helps optimize contrast and improves visibility of fine structural details.

Illuminator

Modern compound microscopes typically use LED illumination, providing bright, uniform, and energy-efficient lighting. Some advanced research microscopes may also use halogen or specialized illumination systems.

Coarse Adjustment Knob

The coarse adjustment knob moves the stage quickly for initial focusing. It is mainly used with low-power objective lenses.

Fine Adjustment Knob

The fine adjustment knob makes small, precise focusing movements, allowing users to obtain sharp images at higher magnifications.

Base

The base supports the entire microscope and provides excellent stability during operation. In many models, it also houses the illumination system and electrical components.

Rack Stop

The rack stop limits the upward movement of the stage, protecting the objective lenses and microscope slides from accidental contact and damage.

Filter Holder

The filter holder accommodates optical filters that enhance image contrast, improve color balance, and optimize illumination for specialized microscopy applications.

Compound Microscope Working Principles

The compound microscope’s working principles are based on the combination of optical lenses and controlled illumination to magnify microscopic specimens. A compound microscope uses two separate lens systems—the objective lens and the eyepiece (ocular lens)—to create a highly enlarged and detailed image.

When light passes through a specimen, the objective lens forms the first magnified image. This intermediate image is then enlarged again by the eyepiece, allowing the observer to see structures that are invisible to the naked eye. The quality of the final image depends on proper illumination, accurate focusing, and the quality of the optical components.

Understanding the working principle of a compound microscope helps students and laboratory professionals use the instrument more effectively while obtaining clear and accurate observations.

---

Step 1: Light Source

The process begins with the microscope’s illuminator, usually an LED or halogen lamp located in the base.

The light source provides bright, uniform illumination that passes upward through the optical system. Modern LED illumination offers consistent brightness, lower heat generation, and longer operational life.

---

Step 2: Condenser Focus

After leaving the illuminator, the light enters the condenser.

The condenser collects and concentrates the light into a focused beam, ensuring that maximum illumination reaches the specimen. Correct condenser positioning significantly improves image brightness, sharpness, and resolution.

The iris diaphragm, attached below the condenser, regulates the amount of light entering the specimen to optimize contrast.

---

Step 3: Light Passes Through the Specimen

The focused beam of light passes through the transparent or semi-transparent specimen mounted on the microscope slide.

Different parts of the specimen absorb or transmit varying amounts of light, creating contrast that reveals cellular structures, microorganisms, tissues, or other microscopic details.

---

Step 4: Objective Lens Magnification

The transmitted light enters the selected objective lens, which performs the primary magnification.

Each objective lens is designed for a specific magnification level:

• 4× – Scanning
• 10× – Low Power
• 40× – High Power
• 100× – Oil Immersion

The objective lens creates a highly enlarged, inverted, and real image of the specimen.

---

Step 5: Intermediate Image Formation

After magnification by the objective lens, a real intermediate image is formed inside the body tube.

This image contains most of the specimen’s fine structural details and serves as the basis for the final magnification.

High-quality optical glass and precision lens alignment ensure that the intermediate image remains sharp and free from optical distortion.

---

Step 6: Eyepiece (Ocular Lens) Magnification

The intermediate image then passes into the eyepiece (ocular lens).

The eyepiece acts like a magnifying glass, enlarging the intermediate image further before it reaches the observer’s eye.

Most laboratory microscopes are equipped with 10× wide-field eyepieces, although 15× and 20× ocular lenses are also available for specialized applications.

---

Step 7: Final Image Formation

Finally, the observer sees a highly magnified virtual image through the eyepiece.

The final image appears much larger than the original specimen while maintaining excellent detail and contrast.

When the microscope is properly focused, users can clearly observe cells, bacteria, fungi, blood components, tissue sections, and many other microscopic structures.

---

Magnification Formula

One of the most important concepts in microscopy is total magnification. It is calculated by multiplying the magnification of the eyepiece by the magnification of the selected objective lens.

Formula

Total Magnification = Eyepiece Magnification × Objective Lens Magnification

Common Examples

For example, if a microscope has a 10× eyepiece and a 40× objective lens, the total magnification is:

10 × 40 = 400×

This means the specimen appears 400 times larger than its actual size.

---

Types of Objective Lenses

Objective lenses are the heart of every Compound Microscope. Each lens is designed for a specific magnification level and observation purpose.

*Color bands follow common microscope conventions and may vary slightly by manufacturer.

Scanning Objective (4×)

The 4× objective provides the widest field of view and is used first when examining a slide. It helps users quickly locate and center the specimen before switching to higher magnifications.

Low Power Objective (10×)

The 10× objective offers moderate magnification for observing overall specimen morphology, tissue organization, and larger cellular structures.

High Power Objective (40×)

The 40× objective is widely used for detailed examination of cells, microorganisms, and histological sections. Fine focusing is essential at this magnification to obtain a sharp image.

Oil Immersion Objective (100×)

The 100× oil immersion objective provides the highest magnification in standard compound microscopes. A drop of immersion oil is placed between the slide and the objective lens to reduce light refraction, increase numerical aperture, and improve image resolution.

---

Working Procedure of a Compound Microscope

Following the correct operating procedure ensures accurate observations and protects both the microscope and the specimen.

Step 1: Place the Microscope Properly

Position the microscope on a stable, clean, vibration-free laboratory bench. Ensure there is adequate lighting and sufficient workspace around the instrument.

Step 2: Turn on the Illumination

Switch on the LED or halogen light source and adjust the brightness to a comfortable level. Avoid excessive illumination, which can reduce image contrast.

Step 3: Clean the Optical Components

Before use, inspect the eyepiece and objective lenses. Clean them gently with approved lens paper and lens-cleaning solution if dust or smudges are present.

Step 4: Place the Specimen Slide

Place the prepared slide on the stage and secure it with the stage clips or mechanical stage holder. Center the specimen over the stage opening.

Step 5: Select the Lowest Objective

Rotate the revolving nosepiece to select the 4× scanning objective. Beginning with the lowest magnification makes it easier to locate and focus on the specimen.

Step 6: Focus Using the Coarse Adjustment

While viewing through the eyepiece, slowly adjust the coarse focus knob until the specimen becomes visible. Move carefully to avoid contact between the objective lens and the slide.

Step 7: Refine the Focus

Use the fine adjustment knob to sharpen the image. Fine focusing is especially important when using the 40× or 100× objectives.

Step 8: Adjust the Condenser and Iris Diaphragm

Raise or lower the condenser as needed and adjust the iris diaphragm to achieve the best balance of brightness and contrast.

Step 9: Increase Magnification

Once the specimen is properly focused at low power, rotate to the 10×, 40×, or 100× oil immersion objective as required. Use only the fine adjustment knob at higher magnifications.

Step 10: Observe and Record

Carefully observe the specimen, capture images if a digital camera is attached, and record important findings for analysis or documentation.

Step 11: Finish and Store the Microscope

After use:

• Return to the 4× objective
• Remove the slide carefully
• Switch off the illumination
• Clean any immersion oil from the objective lens
• Cover the microscope with a dust cover
• Store it in a dry, dust-free location

Proper handling and routine maintenance ensure long service life and consistently reliable performance.

---

Applications of Compound Microscope

The Compound Microscope is an essential scientific instrument used across education, healthcare, industry, and research. Its ability to produce high-resolution images makes it indispensable in many disciplines.

Schools

Students use compound microscopes to learn the fundamentals of biology, including the study of plant cells, animal cells, microorganisms, and tissue structures. Practical microscopy strengthens scientific understanding and laboratory skills.

Colleges and Universities

Higher education institutions rely on laboratory microscopes for advanced teaching in zoology, botany, microbiology, biotechnology, pathology, genetics, and life sciences. Students gain hands-on experience with microscopic analysis and specimen preparation.

Hospitals

Clinical laboratories use compound microscopes to examine blood smears, urine sediments, body fluids, tissue biopsies, and infectious microorganisms. They play a vital role in disease diagnosis and patient care.

Pathology Laboratories

Pathologists examine stained tissue sections under compound microscopes to identify abnormal cells, detect tumors, diagnose infections, and evaluate disease progression.

Research Institutes

Scientific researchers use biological microscopes to investigate cell biology, microbiology, immunology, genetics, molecular biology, and biomedical sciences. Microscopy supports innovation and discovery across multiple research fields.

Pharmaceutical Industry

Quality control laboratories inspect raw materials, formulations, microbial contamination, and product consistency. Compound microscopes help ensure that medicines meet regulatory and manufacturing standards.

Biotechnology

Biotechnology laboratories use compound microscopes for cell culture monitoring, genetic research, recombinant DNA studies, and microbial analysis, supporting advances in healthcare and industrial biotechnology.

Microbiology

Microbiologists examine bacteria, fungi, protozoa, algae, and other microorganisms. Compound microscopes are fundamental for microbial identification, staining techniques, and laboratory investigations.

Agriculture

Agricultural scientists study plant tissues, pollen grains, fungal pathogens, insect structures, and soil microorganisms. Microscopy contributes to crop improvement, plant disease diagnosis, and agricultural research.

Food Testing

Food quality laboratories inspect food samples for contaminants, molds, yeasts, parasites, and foreign particles. Microscopic analysis supports food safety and quality assurance programs.

Veterinary Laboratories

Veterinary professionals use compound microscopes to diagnose animal diseases by examining blood, tissue samples, parasites, and infectious microorganisms, helping improve animal health and disease management.

---

Advantages of Compound Microscope

The Compound Microscope offers numerous advantages that make it one of the most widely used scientific instruments in laboratories and educational institutions.

1. High Magnification

A compound microscope provides magnification from 40× to 1000×, allowing users to observe microscopic structures with excellent detail.

2. Excellent Resolution

Modern optical systems produce sharp, high-contrast images that reveal fine cellular and tissue structures.

3. Multiple Objective Lenses

Interchangeable objective lenses allow users to switch between different magnification levels quickly.

4. Bright LED Illumination

LED illumination provides uniform lighting, consumes less power, generates minimal heat, and has a long service life.

5. Precise Focusing

Coarse and fine adjustment knobs make focusing simple and highly accurate.

6. Suitable for Various Specimens

The microscope can be used to examine plant tissues, animal cells, bacteria, fungi, parasites, blood smears, and prepared slides.

7. Widely Used Across Industries

Compound microscopes are essential in education, healthcare, pharmaceuticals, biotechnology, agriculture, and industrial quality control.

8. Durable Construction

Research-grade microscopes feature robust metal bodies that ensure stability and long-term reliability.

9. Easy to Learn

Students and beginners can quickly understand microscope operation with basic laboratory training.

10. Supports Digital Imaging

Many modern compound microscopes can be equipped with digital cameras for image capture, documentation, and research.

---

Limitations of Compound Microscope

Although highly versatile, a compound microscope has certain limitations.

1. It cannot observe objects smaller than the resolution limit of visible light.
2. Live specimens may require special preparation techniques.
3. Higher magnification requires careful focusing.
4. Oil immersion objectives require additional maintenance.
5. Thick specimens cannot be observed clearly.
6. High-quality research microscopes can be expensive.
7. Proper training is necessary to obtain accurate observations.

---

Maintenance Tips

Proper maintenance extends the life of a Compound Microscope and ensures consistently clear images.

Clean Optical Lenses Carefully

Always use lens paper and approved lens cleaning solution. Never clean optical lenses using ordinary tissue paper or cloth.

Store in a Dry Environment

Keep the microscope in a clean, dry location away from humidity and direct sunlight.

Use a Dust Cover

Always cover the microscope after use to prevent dust accumulation.

Adjust Illumination Properly

Avoid using maximum brightness unless required. Proper illumination improves image quality and extends LED life.

Clean Oil Immersion Lens Immediately

After using the 100× objective, remove immersion oil promptly to prevent residue buildup.

Inspect Moving Parts

Periodically check focus knobs, stage movement, and mechanical components for smooth operation.

Schedule Regular Servicing

Professional calibration and preventive maintenance help maintain optical accuracy and mechanical performance.

---

Safety Precautions

Following good laboratory practices protects both the user and the microscope.

1. Carry the microscope using both hands.
2. Place it on a stable laboratory bench.
3. Never touch optical lenses with your fingers.
4. Start observations with the 4× objective.
5. Avoid forcing focus knobs.
6. Keep liquids away from electrical components.
7. Switch off illumination after use.
8. Clean immersion oil immediately after observation.
9. Store slides safely after examination.
10. Cover the microscope before storage.

---

Difference Between Simple Microscope and Compound Microscope

---

Frequently Asked Questions (FAQ)

1. What is a Compound Microscope?

A compound microscope is an optical microscope that uses multiple lenses to magnify microscopic specimens, enabling detailed observation of cells, tissues, and microorganisms.

---

2. What is the working principle of a compound microscope?

The working principle of a compound microscope is based on the magnification of a specimen using the objective lens followed by further magnification through the eyepiece.

---

3. What are the Parts of a Compound Microscope?

The major parts include:

• Eyepiece
• Objective Lenses
• Revolving Nosepiece
• Stage
• Condenser
• Iris Diaphragm
• Illuminator
• Coarse Adjustment
• Fine Adjustment
• Arm
• Base

---

4. What is a Compound Microscope Diagram?

A compound microscope diagram is a labeled illustration showing the optical and mechanical components of the microscope and their arrangement.

---

5. How much magnification does a compound microscope provide?

Most laboratory compound microscopes provide 40×, 100×, 400×, and 1000× total magnification.

---

6. What is the use of an oil immersion lens?

The 100× oil immersion objective increases image resolution by minimizing light refraction between the slide and the objective lens.

---

7. What are the applications of a compound microscope?

Compound microscopes are used in:

• Biology
• Microbiology
• Pathology
• Hospitals
• Pharmaceutical Industry
• Biotechnology
• Food Testing
• Agriculture
• Veterinary Science
• Research Laboratories

---

8. How do you focus a compound microscope?

Begin with the 4× objective, use the coarse adjustment knob for initial focus, and then use the fine adjustment knob to obtain a sharp image.

---

9. Why is a condenser important?

The condenser concentrates light onto the specimen, improving image brightness, contrast, and resolution.

---

10. Who invented the compound microscope?

The first compound microscope is generally credited to Dutch spectacle makers Hans Janssen and Zacharias Janssen in the late 16th century, with later improvements by scientists such as Galileo Galilei, Robert Hooke, and Antonie van Leeuwenhoek.

---

Wrapping Notes

The compound microscope is an essential instrument in education, healthcare, research, and laboratory applications. By understanding the compound microscope diagram, its parts, and compound microscope working principles, users can perform accurate observations and obtain reliable results.

As a trusted compound microscope manufacturer in India, Opxica offers high-quality microscopes for schools, colleges, hospitals, laboratories, and research institutes. Designed with precision optics and durable construction, Opxica microscopes deliver excellent performance for both learning and professional scientific applications.

Whether you’re a student, educator, or researcher, a reliable compound microscope is a valuable tool for precise microscopic analysis and scientific discovery.
