Description
Technical Specifications
| Parameter | Specification |
|---|---|

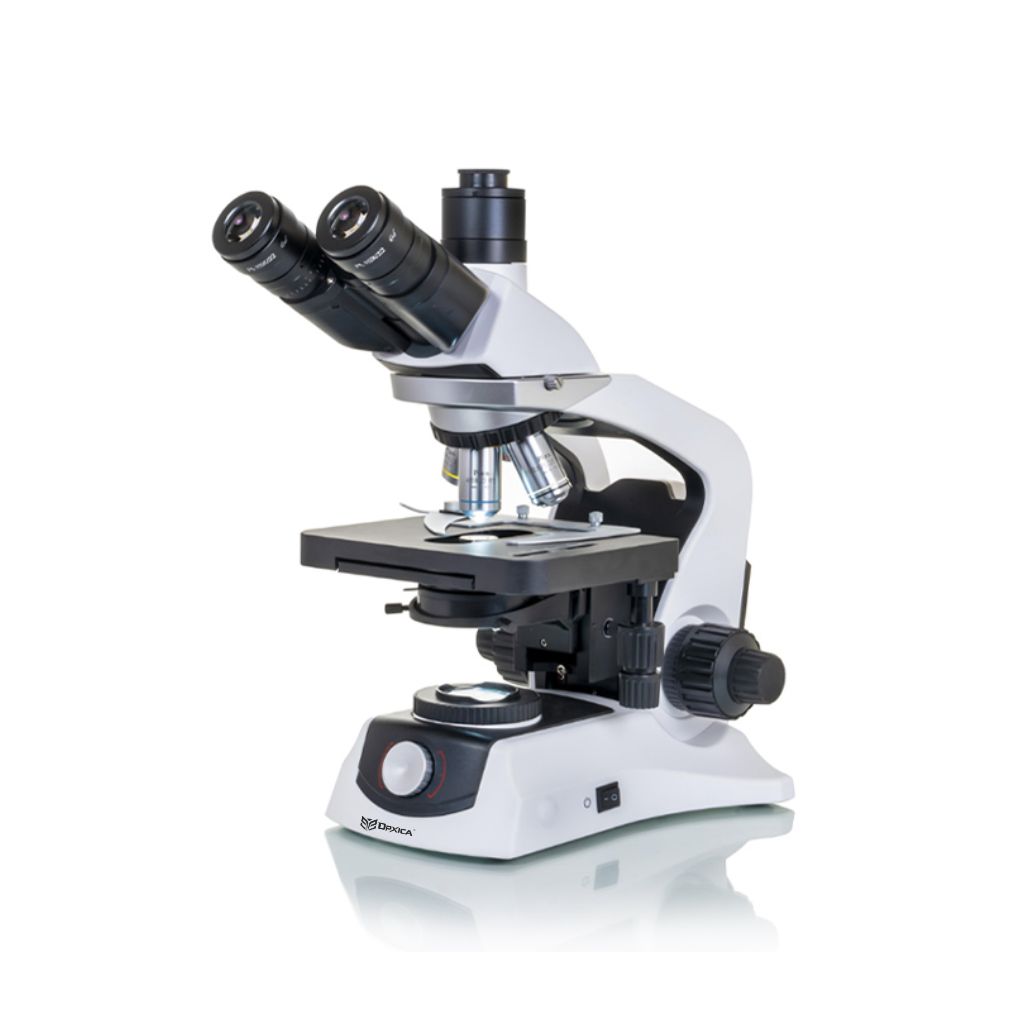

| Product Name | Ultra Series Trinocular Microscope PSTM-109 |
| Brand | OPXICA |
| Optical System | Infinity Corrected Optical System |
| Microscope Type | Research Trinocular Microscope |
| Viewing Head | Binocular/Trinocular Head, 30° Inclined, 360° Rotatable |
| Eyepiece | WF 10X / 22mm Wide Field |
| Objectives | Plan Achromatic 4X, 10X, 40X, 100X Oil |
| Nosepiece | Quintuple Ball Bearing Type |
| Stage | Rackless Mechanical Stage with X-Y Movement |
| Focusing System | Coaxial Coarse & Fine Focusing |
| Illumination | 5W LED Koehler Illumination with Intensity Control |
| Body Material | Heavy Duty Metal Construction |
| Finish | Powder Coated Corrosion Resistant Finish |
| Power Supply | AC Power with Built-in LED System |
| Applications | Research, Pathology, Colleges, Universities, Hospitals, Microbiology, Pharmaceutical Laboratories |
Key Features
- Infinity Corrected Optical System for superior image quality.
- Trinocular observation head for digital camera attachment.
- 30° inclined ergonomic viewing head with 360° rotation.
- Wide-field WF10X/22mm eyepieces for comfortable observation.
- Plan Achromatic objectives for high-resolution imaging.
- Quintuple ball bearing nosepiece for smooth objective selection.
- Rackless mechanical stage with precise X-Y movement.
- Coaxial coarse and fine focusing knobs for accurate focusing.
- 5W LED Koehler illumination with adjustable brightness.
- Durable heavy-duty metal body with long service life.
- Suitable for research laboratories, pathology, microbiology, colleges, universities, and hospitals.
- Low maintenance and user-friendly operation.
Working Purpose
The OPXICA Ultra Series Trinocular Microscope PSTM-109 is specially developed for high-precision microscopic examination in research and diagnostic laboratories. It is widely used for studying biological tissues, microorganisms, bacteria, blood smears, pathological samples, and educational specimens.
Its Infinity Corrected Optical System provides outstanding image sharpness and excellent contrast, allowing users to perform detailed scientific observations with confidence. The trinocular port also enables digital image capture, documentation, and live display through a microscope camera, making it suitable for research publications, laboratory documentation, and classroom demonstrations.
Applications
The Ultra Series Trinocular Microscope is widely used in:
- Research Laboratories
- Medical Colleges
- Universities
- Pathology Laboratories
- Histopathology Labs
- Microbiology Laboratories
- Pharmaceutical Industries
- Biotechnology Research
- Clinical Diagnostic Laboratories
- Food Testing Laboratories
- Environmental Testing Laboratories
- Veterinary Laboratories
- Quality Control Laboratories
Wrapping Notes
The OPXICA Ultra Series Trinocular Microscope PSTM-109 combines premium optical performance, durable construction, and ergonomic operation to meet the requirements of modern laboratories. Its infinity optical system, precision mechanical stage, smooth focusing mechanism, and advanced LED Koehler illumination ensure reliable performance for routine laboratory work as well as advanced scientific research. Designed for long-term accuracy and user comfort, it offers excellent value for educational institutions, hospitals, and research professionals.
Frequently Asked Questions (FAQs)
1. What is the Ultra Series Trinocular Microscope used for?
It is used for biological research, pathology, microbiology, clinical diagnosis, educational laboratories, pharmaceutical research, and scientific observation.
2. What is an Infinity Corrected Optical System?
It is an advanced optical design that provides higher image quality, improved resolution, reduced distortion, and allows additional optical accessories without affecting image performance.
3. Why does this microscope have a trinocular head?
The trinocular head allows a digital microscope camera to be connected for image capture, video recording, documentation, and live display on a computer.
4. Which objectives are included?
The microscope includes Plan Achromatic objectives of 4X, 10X, 40X, and 100X (Oil Immersion).
5. What type of illumination does this microscope use?
It uses 5W LED Koehler illumination with adjustable intensity for bright and uniform lighting.
6. Is the microscope suitable for research laboratories?
Yes. It is specifically designed for advanced laboratory and research applications.
7. Can this microscope capture images?
Yes. A microscope camera can be attached through the trinocular port for photography and video recording.
8. Does it support oil immersion observation?
Yes. The 100X Plan Achromatic Oil Immersion Objective is included for high-magnification observations.
9. Is the stage mechanically controlled?
Yes. It features a rackless mechanical stage with precise X-Y movement for accurate specimen positioning.
10. Who should use this microscope?
It is ideal for researchers, microbiologists, pathologists, laboratory technicians, universities, hospitals, pharmaceutical companies, and diagnostic laboratories.
