Description
Technical Specifications
| Specification | Details |
|---|---|

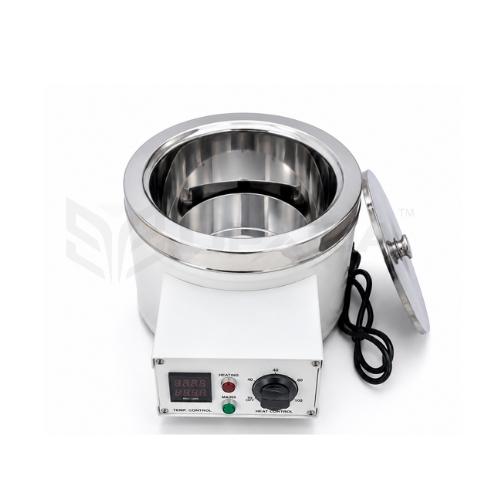

| Product Name | Laboratory Oil Bath |
| Internal Model No. | OPX-239 |
| Product Type | High Temperature Oil Bath |
| Temperature Range | Ambient to 350°C |
| Temperature Accuracy | ±1°C |
| Temperature Control | Thermostatic Controller |
| Inner Chamber | SS304 Stainless Steel |
| Outer Body | Epoxy Powder-Coated Mild Steel |
| Construction | Double Wall Insulated |
| Heating Medium | High Temperature Oil |
| Power Supply | 230V ±10%, 50Hz |
| Installation | Bench Top |
Features
- Temperature range up to 350°C
- Thermostatic temperature control
- Temperature accuracy of ±1°C
- Double-wall insulated construction
- SS304 stainless steel inner chamber
- Epoxy powder-coated outer body
- Uniform heat distribution
- Compact bench-top design
- Low maintenance
- Suitable for continuous laboratory operation
Benefits
- Provides stable and uniform high-temperature heating
- Suitable for applications beyond water bath temperature limits
- Protects heat-sensitive samples from direct heating
- Excellent corrosion resistance with SS304 construction
- Reliable and accurate temperature control
- Long service life with durable construction
- Ideal for laboratory and industrial heating applications
Available Variants
Rectangular Inner Chamber
| Model | Chamber Size |
|---|---|
| OPX-239A | 250 × 250 × 250 mm |
| OPX-239B | 300 × 300 × 250 mm |
| OPX-239C | 350 × 350 × 250 mm |
Cylindrical Inner Chamber
| Model | Capacity |
|---|---|
| OPX-239D | 3 / 5 Litres |
| OPX-239E | 10 Litres |
Optional Configurations
- Microprocessor PID Digital Temperature Controller
- Timer with Alarm
- 1/20 HP Mechanical Stirrer
- Stainless Steel Stirring Shaft & Blade
- Digital Temperature Display
- Data Logger
- Export Voltage Models
- Customized Chamber Sizes
Applications
- Chemical Laboratories
- Pharmaceutical Industries
- Biotechnology Laboratories
- Research Institutes
- Universities & Colleges
- Food Testing Laboratories
- Petrochemical Laboratories
- Material Testing
- Organic Synthesis
- Distillation Processes
- Sample Preparation
- Industrial Quality Control
Why Choose Our Products
- High-temperature operation up to 350°C
- Durable SS304 stainless steel chamber
- Uniform and stable heat distribution
- Optional PID controller and mechanical stirring
- Multiple chamber sizes and capacities
- Reliable performance for continuous laboratory use
- Custom-built solutions for specialized applications
Frequently Asked Questions
What is a Laboratory Oil Bath used for?
A Laboratory Oil Bath is used for uniform heating of laboratory samples, chemical reactions, distillation, and experiments that require temperatures higher than those achievable with water baths.
What is the maximum operating temperature?
The Laboratory Oil Bath operates up to 350°C with a temperature accuracy of ±1°C.
Why choose an oil bath instead of a water bath?
Oil baths can achieve significantly higher temperatures than water baths while providing stable and uniform heat transfer for laboratory applications.
What optional features are available?
Optional features include a PID digital temperature controller, timer with alarm, and a 1/20 HP mechanical stirrer with a stainless steel stirring shaft and blade.
What chamber sizes are available?
The Oil Bath is available in rectangular chambers of 250 × 250 × 250 mm, 300 × 300 × 250 mm, 350 × 350 × 250 mm, as well as 3/5 litre and 10 litre cylindrical models.
Can customized models be supplied?
Yes. Customized chamber dimensions, capacities, voltage options, and controller configurations are available according to customer requirements.
Is the Oil Bath suitable for continuous operation?
Yes. The robust double-wall construction and thermostatic control make it suitable for long-duration laboratory operation.
Do you supply bulk quantities?
Yes. Opxica supplies Laboratory Oil Baths in bulk for laboratories, universities, pharmaceutical companies, research institutes, OEM partners, distributors, and industrial organizations.
Call to Action
Looking for a reliable Laboratory Oil Bath for high-temperature laboratory heating? Opxica manufactures premium oil baths with precise temperature control, durable SS304 construction, and customizable configurations for research, pharmaceutical, industrial, and educational laboratories. Contact us today for pricing, technical consultation, or bulk procurement.
