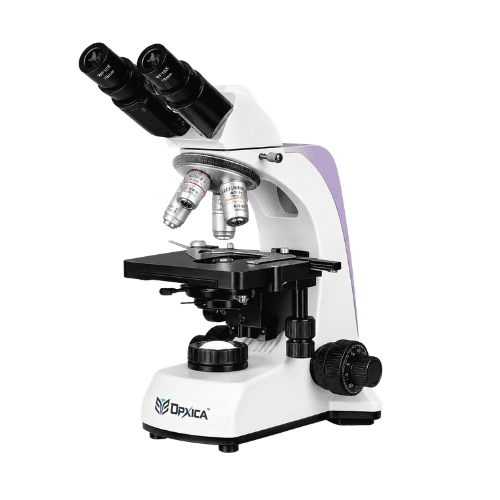

Description
Key Features of OPXICA Advance Binocular Lab Microscope
- High-quality semi plan achromatic optical system
- Ergonomic 30° inclined binocular viewing head
- Smooth coaxial coarse and fine focusing mechanism
- Bright 3W LED illumination with adjustable intensity
- Durable metal body with stable anti-vibration design
- Quadruple revolving nosepiece for quick objective change
- Mechanical stage with precision specimen movement
- Suitable for pathology, biology, microbiology, and laboratory research
- Long operational life with low maintenance requirements
- Designed by OPXICA for professional laboratory applications
Technical Specifications Table
| Parameter | Specification |
|---|---|
| Model No. | ABLM-128 |
| Product Name | Advance Binocular Lab Microscope |
| Brand | OPXICA |
| Microscope Type | Binocular Laboratory Microscope |
| Viewing Head | 30° Inclined Binocular Head |
| Head Rotation | 360° Rotatable |
| Eyepiece | WF 10X / 20 mm |
| Objectives | 4X, 10X, 40X, 100X Oil |
| Optical System | Semi Plan Achromatic |
| Nosepiece | Quadruple Revolving Nosepiece |
| Focusing System | Coaxial Coarse & Fine Focusing |
| Fine Division | 0.002 mm |
| Stage Type | Double Layer Mechanical Stage |
| Stage Size | 140 × 140 mm |
| Stage Movement | 50 × 75 mm |
| Condenser | Abbe Condenser |
| Illumination | 3W LED Adjustable Light |
| Power Supply | 110–240V |
| Body Material | Heavy Duty Metal Construction |
| Application | Laboratory, Research, Clinical & Educational Use |
Working Purpose of Advance Binocular Lab Microscope
The Advance Binocular Lab Microscope is specially developed for magnifying and analyzing microscopic specimens with superior clarity and precision. It is widely used in laboratories, medical colleges, pathology labs, schools, research centers, pharmaceutical industries, and diagnostic laboratories for observing cells, bacteria, tissues, blood samples, microorganisms, and biological structures.
The binocular optical system improves viewing comfort during long laboratory sessions, while the LED illumination enhances specimen visibility. OPXICA designed this microscope to deliver stable performance, accurate focusing, and detailed microscopic observation for professional scientific applications.
Wrapping Notes
The OPXICA Advance Binocular Lab Microscope ABLM-128 is an ideal solution for laboratories and institutions seeking dependable optical performance, durability, and advanced functionality. Combining precision optics, ergonomic design, smooth focusing control, and bright LED illumination, this microscope supports accurate scientific observation across multiple applications. OPXICA continues to deliver high-quality laboratory microscopes manufactured for educational, clinical, and research excellence with trusted performance and modern engineering standards.
